Motor Winding Automation Equipment / Motor Stator / Inner Winding

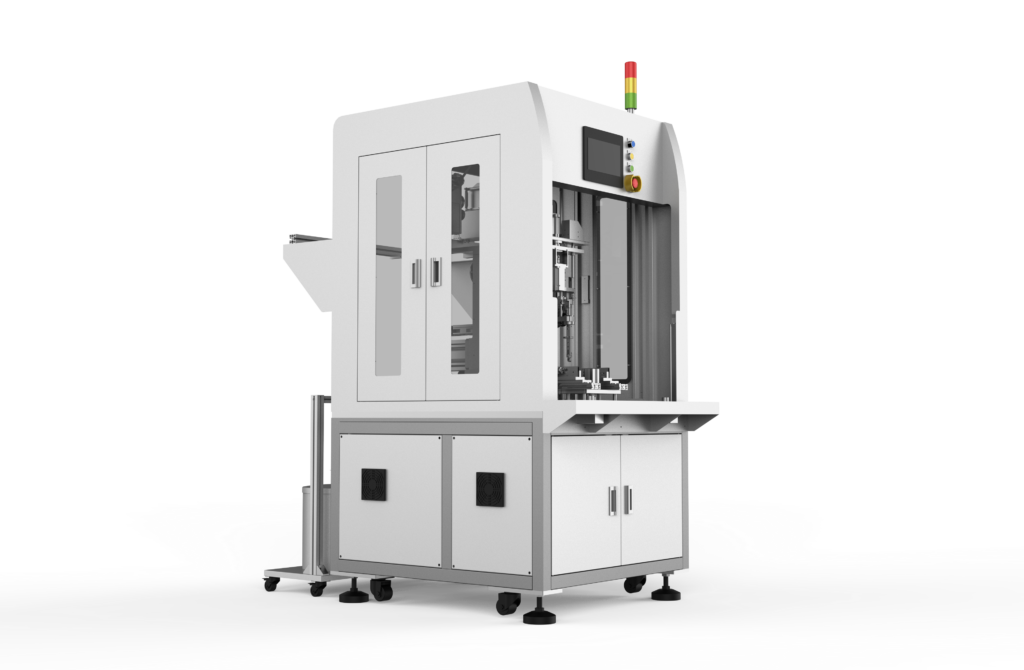

Automatic Nozzle Winding Coil Winding Machine

WMSI-01 / WM02-300GD / WM2-300ND / WM4-200ND / WM6-150ND

Developed to meet the mass production demands of inner-wound brushless stators, this equipment integrates precision needle winding, atomatic wire guiding, and automatic workpiece loading and unloading at each station. It enables stable and efficient processing of stator windings, improves winding consistency and production capacity, and is widely used in the manufacturing of stators for various types of brushless motors.

Product Details

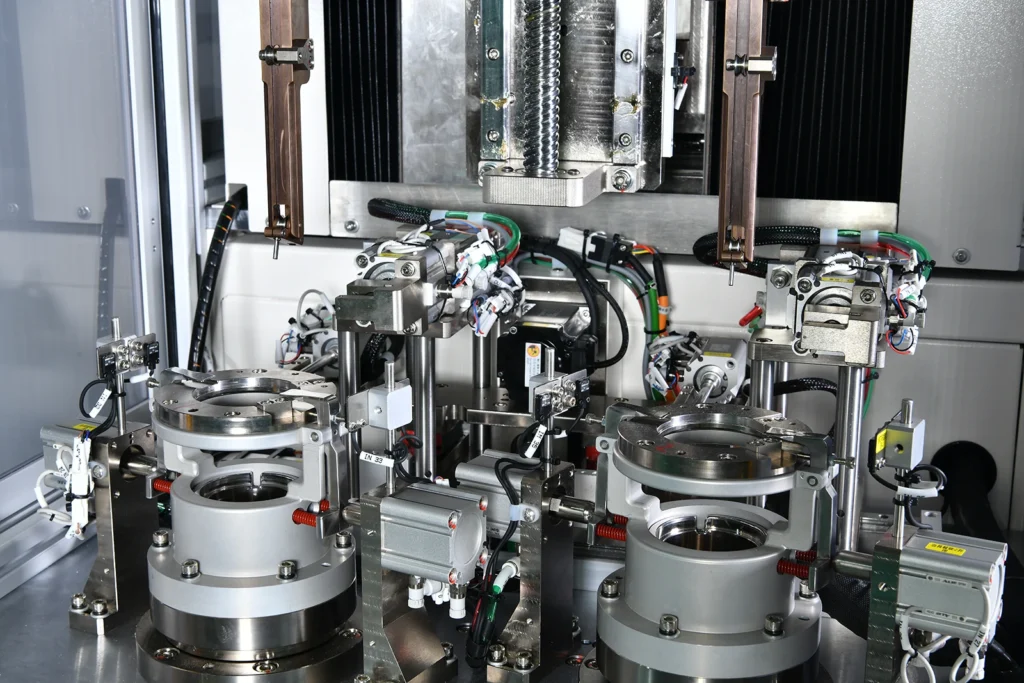

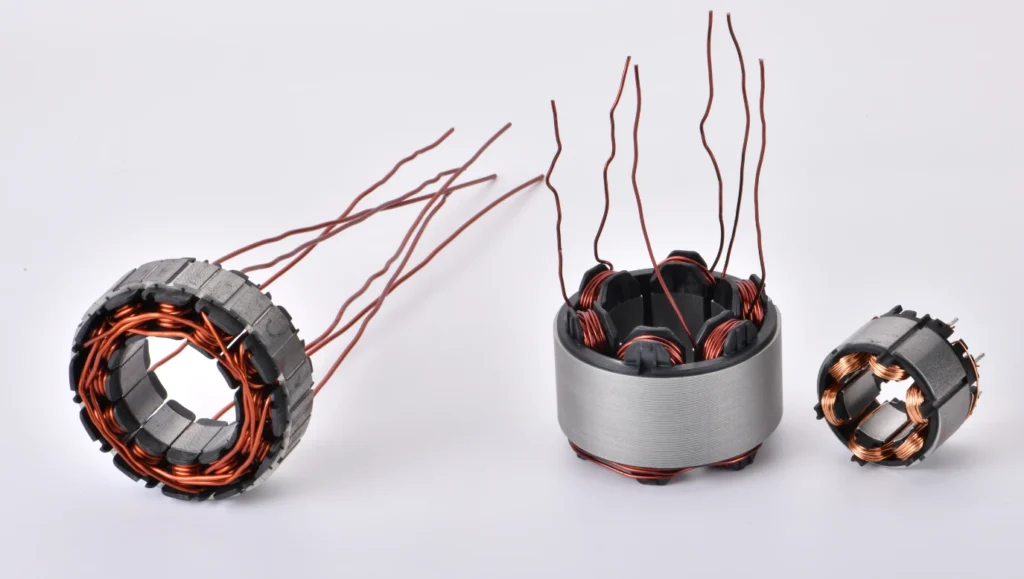

Process Detail 01

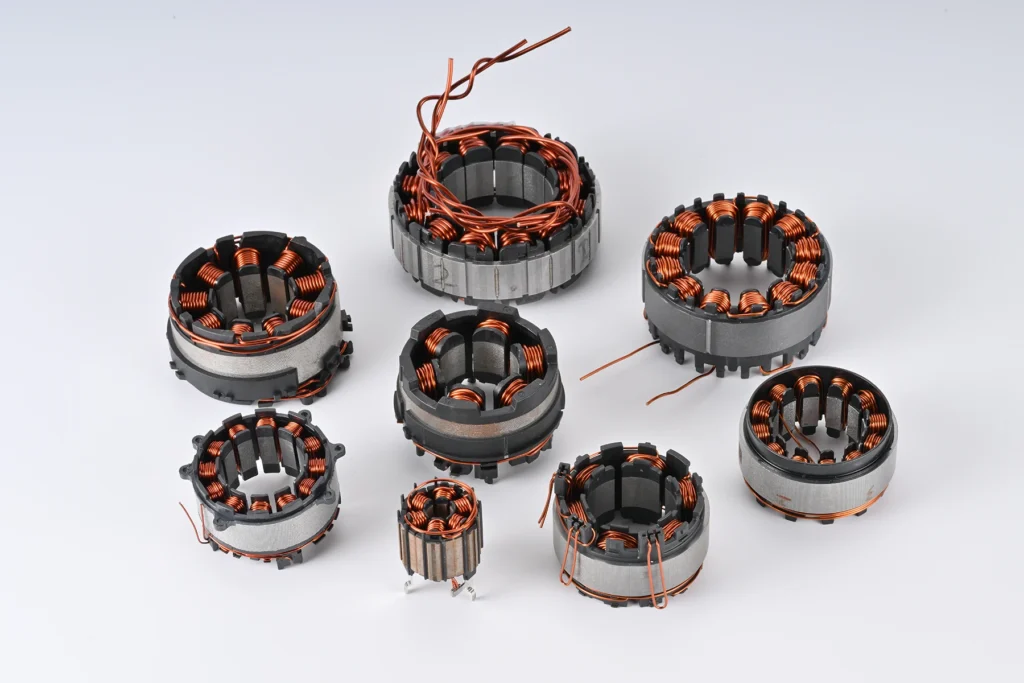

Process Detail 02

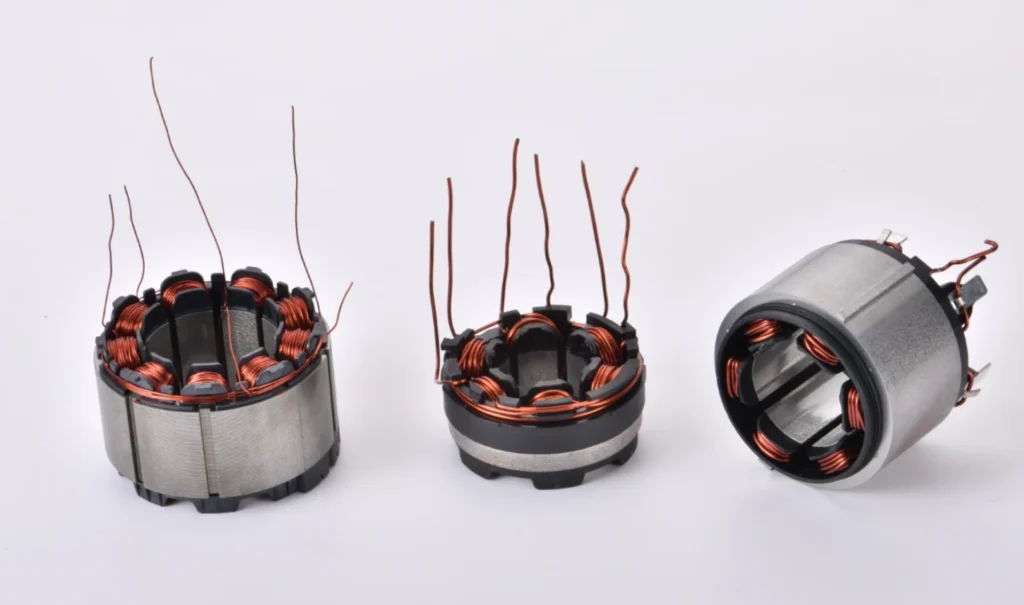

Process Detail 03
Process Detail 04

Advantages

01
Product Feature
02
This series of machine key componets all impored from Japan, high reliability, greatly increase the life of the machine
03
Design novel, simple structure, strong rigidity, simple operation, easy maintenance
04
Programmed by computer or touch screen, the freedom to choose, Chinese or english display easy to understand
05
Key components are sourced from established imported brands for higher reliability and durability.
06
The machine layout and operating logic are mature, making it suitable for early model-direction confirmation.
07
Computer and touchscreen programming support can serve as a reusable baseline for later ACF selling points.
08
This draft currently supports customer review first, and the final website copy should still be refined afterward.
09
Key components are imported from Japan for strong reliability, high durability and longer machine life.
10
Novel appearance, simple structure, strong rigidity, easy operation and convenient maintenance.
11
Programmable by computer or touchscreen, with Chinese and English display options that are easy to understand.
12
Unique quick-coupling fixture design reduces changeover time.

Equipment Parameters

Model WMSI-01
Spindle Number 1
Max Spindle Speed (rpm) MAX 350
Spindle Servo Motor Power (W) 3000; S: 3000
Axis Positioning Accuracy (°) (°) 1-3 arc-min
Nozzle Bar Move Motor Power (W) X:750, Y:750, other:400,
Position Accuracy (mm) ± 0.01
Wire Range (mm) φ0.07-φ1.2mm; max tension range (N): configure the tensioner according to different wire diameters; starting-wire and bridge-wire routing process: top-side feeding and top-side crossover; bottom-side crossover
Stator Diameter Stator (core) size: OD ≤ 200mm, ID ≥ 7mm
Stack Thickness ≤ 50mm
Loading & Unloading Standalone mode, manual loading and unloading
Controller JHY-3
Power Voltage Single-phase 220V, 50/60Hz
Consumed Power (W) 9000
Air Pressure (MPa) 0.45-0.55
Program Storage ≤100
Machine Size (mm) L2000mm * W900mm * H2000mm (including spool placement area)
Machine Weight (kg) 580kg
Tension Range (N) Configure the tensioner according to different wire diameters
Starting Wire / Bridge Wire Top-side feeding and top-side crossover
