Automatic Split Stator Winding Machine

WM11S / WM3L-250 / WM2-300H / WM4-200H

Developed to meet the mass production demands of segmented iron core stators, this equipment integrates multi-axis precision winding, atomatic wire guiding and automatic station unloading as a whole. It enables stable and efficient winding processing, improves coil consistency and mass production capacity, and is widely applied in the manufacturing of stators for various segmented iron core motors.

Product Details

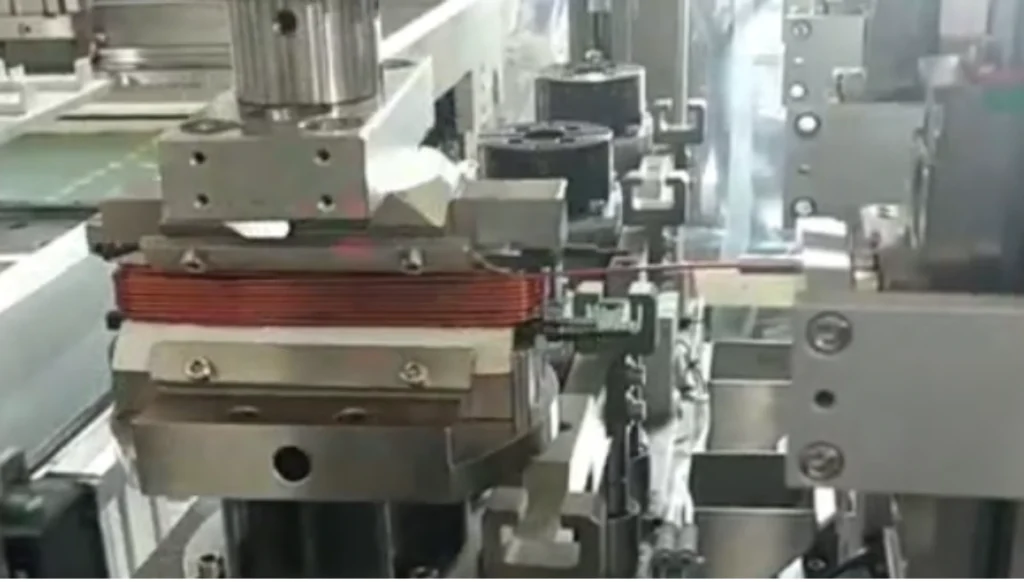

Process Detail 01

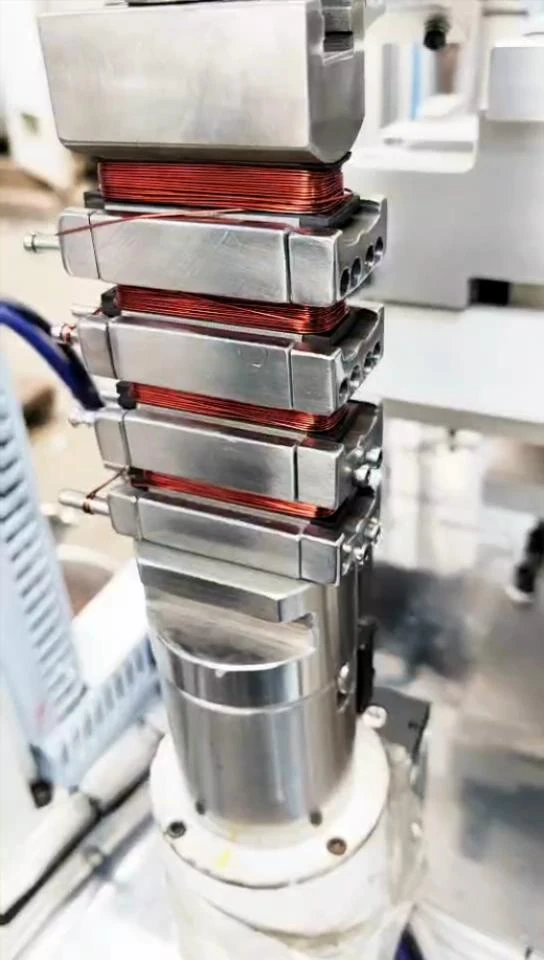

Process Detail 02

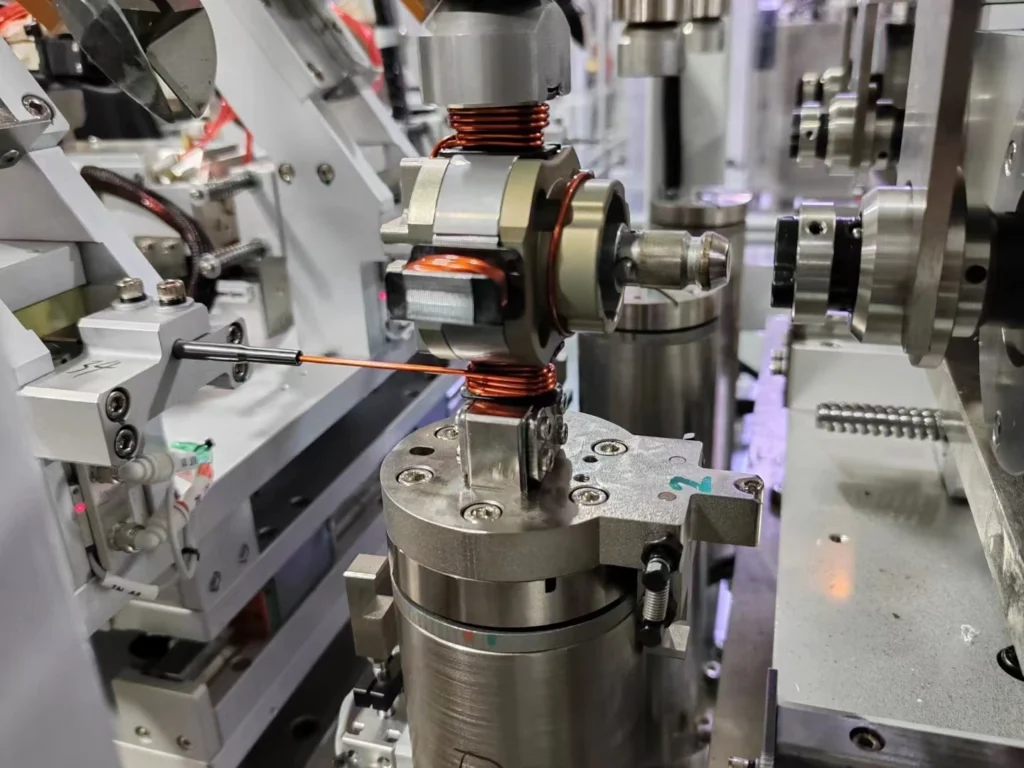

Process Detail 03
Process Detail 04
Process Detail 05
Process Detail 06

Advantages

01
Built as an automation solution for motor stator applications, suitable for motor coils, stators and related components.
02
Equipment capability is organized around takt time, winding consistency and coordination with adjacent processes.
03
Inspection, assembly, transfer and tooling modules can be expanded according to project needs.
04
Emphasis is placed on long-run stability, maintainability and project-delivery adaptability.
05
Key components are sourced from established imported brands for higher reliability and durability.
06
The machine layout and operating logic are mature, making it suitable for early model-direction confirmation.
07
Computer and touchscreen programming support can serve as a reusable baseline for later ACF selling points.
08
This draft currently supports customer review first, and the final website copy should still be refined afterward.

Equipment Parameters

Model WM4-140 / WM6-90 / WM8-70 / WM8-45 | WM2-200 / WM4-200
Spindle Number 4 / 6 / 8 | 2 / 4
Max Spindle Speed (rpm) MAX 5000 | MAX 1000
Spindle Servo Motor Power (W) 1500 / 3000 | 2000
Position Accuracy (mm) 1-3 arc-min
Nozzle Bar Move Motor Power (W) X:200, Y:200, Z:400
Wire Range (mm) φ0.15-φ0.9; larger wire diameters can be customized per process
Applicable Core Size (mm) Common stator pitches 30 / 60 / 70 / 80, max outer diameter approx. 180
Stack Thickness Common 20 / 35 / 50, max approx. 70
Loading & Unloading Automatic discharge / expandable to automatic loading and unloading
Controller JHY-3
Machine Size (mm) 1200×1300×1700mm / 800kg; 2815×2080×1800mm / 960kg
