Designed for large-scale and heavy-duty coil production, supporting high-load manufacturing applications.
Products
Coil Winding Automation Equipment / Motor Stator / Large-spacing Heavy-duty
Heavy-duty Coil Winding Machine
Heavy-duty
Engineered for high-volume production of large-scale and heavy-duty coils, this machine integrates multi-spindle precision winding, wide-range automatic wire guiding, and automated unloading. Designed with reliable operation and high load-handling capability, it enables high-accuracy coil forming while improving production consistency and processing efficiency, and is widely used in the manufacturing of high-power motors, large inductors, and heavy-duty coil components.
Product Details
Advantages
02
Multi-spindle precision winding technology ensures stable processing and consistent coil forming.
03
Wide-range automatic wire guiding supports precise wire arrangement for large coil structures.
04
High-rigidity machine design enhances operational stability and long-term production reliability.
05
Automated unloading streamlines production flow and improves continuous processing efficiency.
06
Precise process control ensures dimensional consistency and supports high-volume manufacturing.
07
High load-handling capability enables processing of large coils for high-power applications.
08
Stable winding performance reduces process variation and improves manufacturing repeatability.
09

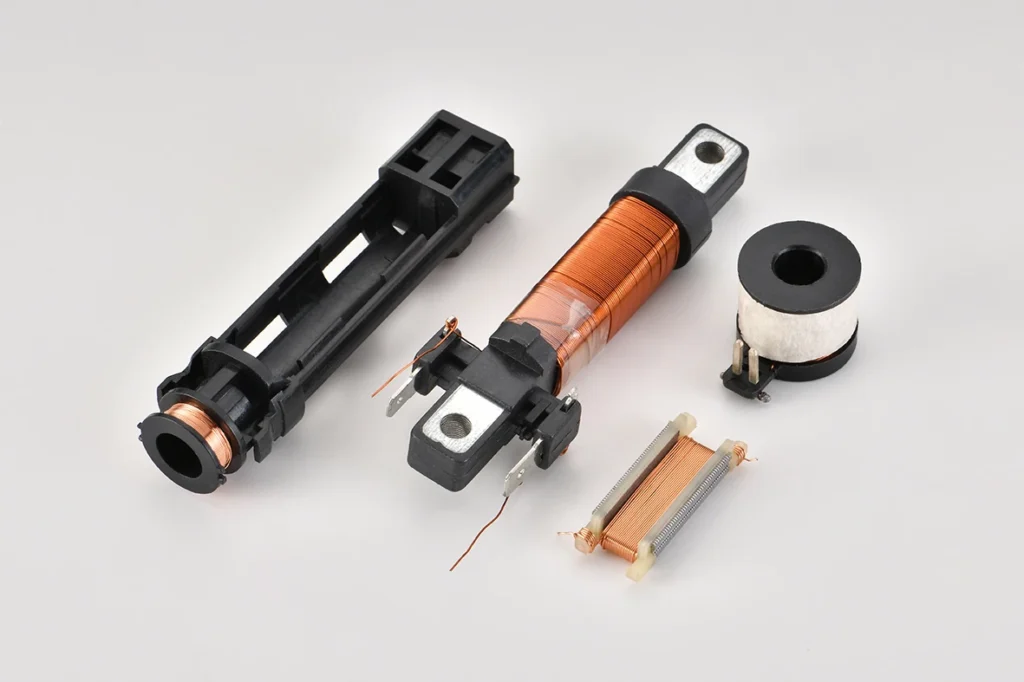

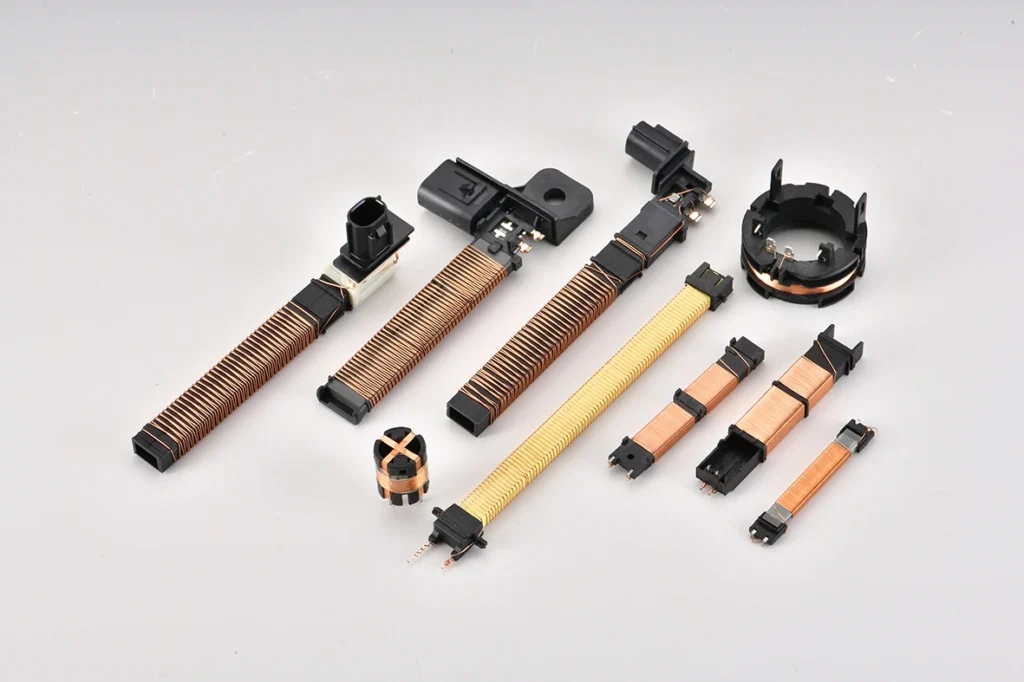

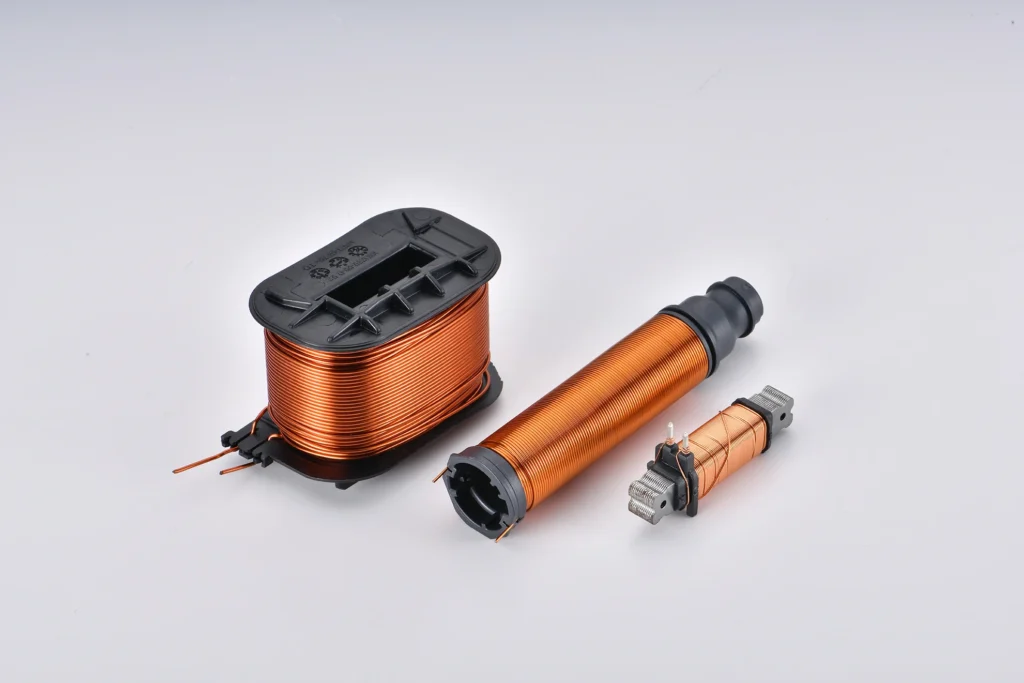

Suitable for manufacturing high-power motor coils, large inductors, and heavy-duty coil components.
Equipment Parameters
| Model | WM4-140 / WM6-90 / WM8-70 / WM8-45 | WM2-200 / WM4-200 |
|---|---|
| Spindle Number | 4 / 6 / 8 | 2 / 4 |
| Max Spindle Speed (rpm) | MAX 5000 | MAX 1000 |
| Spindle Servo Motor Power (W) | 1500 / 3000 | 2000 |
| Position Accuracy (mm) | 1-3 arc-min |
| Nozzle Bar Move Motor Power (W) | X:200, Y:200, Z:400 |
| Wire Range (mm) | φ0.15-φ0.9; larger wire diameters can be customized per process |
| Applicable Core Size (mm) | Common stator pitches 30 / 60 / 70 / 80, max outer diameter approx. 180 |
| Stack Thickness | Common 20 / 35 / 50, max approx. 70 |
| Loading & Unloading | Automatic discharge / expandable to automatic loading and unloading |
| Controller | JHY-3 |
| Machine Size (mm) | 1200×1300×1700mm / 800kg; 2815×2080×1800mm / 960kg |
