01

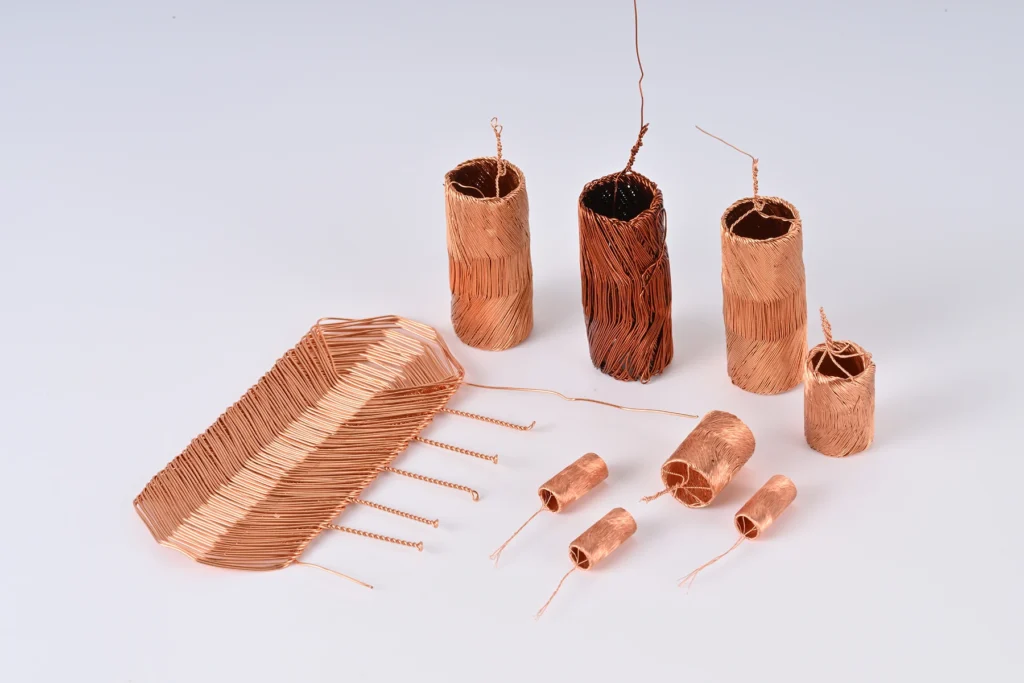

Built for air coil forming production in coreless / linear motor coil applications, suitable for air coils, wireless charging coils or linear-motor coil scenarios.
Products
Motor Winding Automation Equipment / Ironless Coil / Air Coil Forming

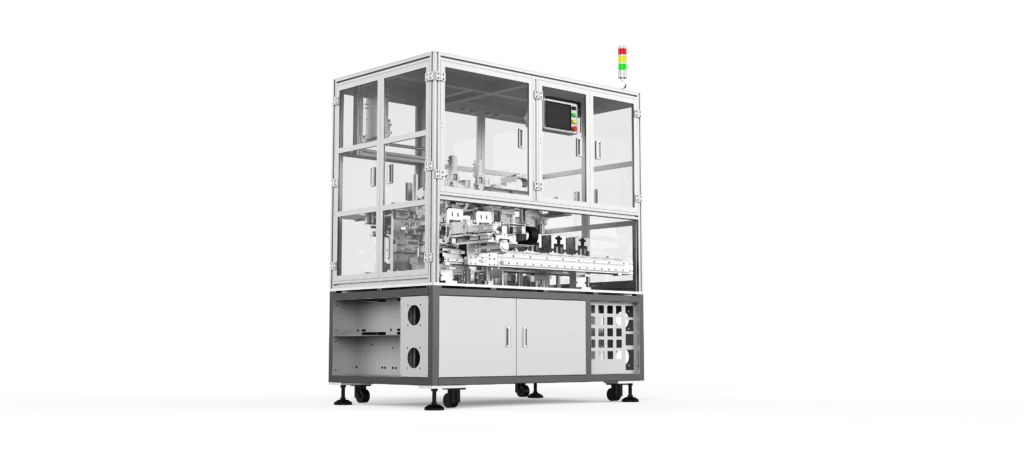

Ironless Coil Winding Machine – Diamond Winding Type & Arc Positioning
Diamond Winding / Arc Positioning

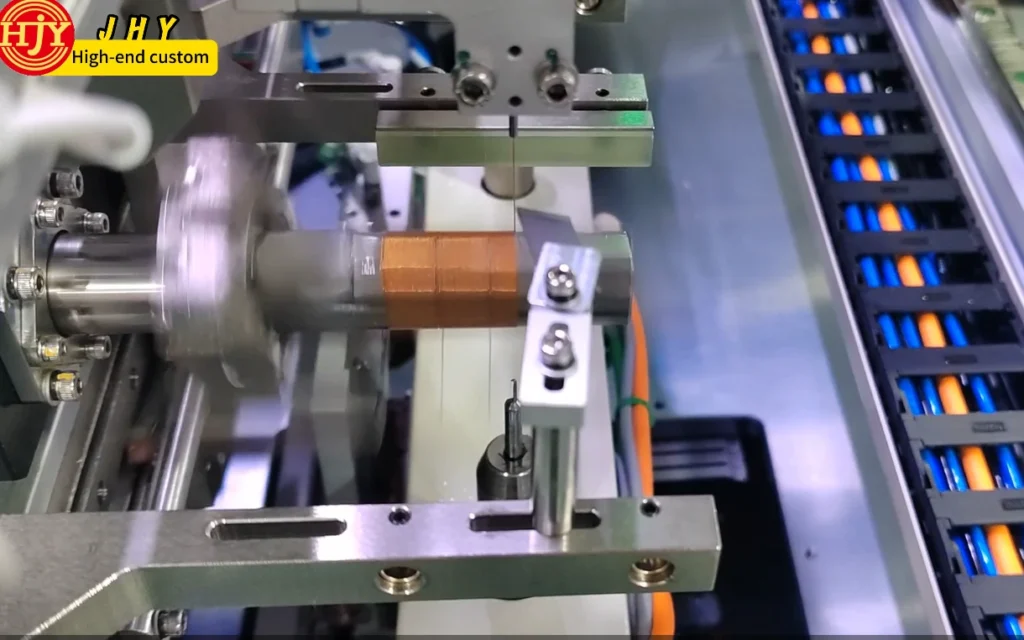

For the mass production development of special-shaped coreless coils, the equipment integrates precision winding, arc positioning, atomatic wire guiding and discharging. It delivers stable coil forming with high precision and excellent consistency, and is suitable for manufacturing coreless motors used in robots, medical motors, gimbal servos and other fields.
Product Details
Advantages
02
Focuses on forming consistency, winding control and process adaptability across different wire diameters.
03
Tooling, heating, inspection and discharge methods can be expanded according to product structure.
04
Emphasis is placed on stable standalone forming, changeover efficiency and future product-line split potential.
Equipment Parameters
| Model | Linear Motor Coil Winding Machine |
|---|---|
| Product Series | Coil Winding Automation Equipment |
| Application | Coreless / Linear Motor Coil |
| Process Type | Air Coil Forming |
| Target Industry | Motor |
| Delivery Form | Standalone machine |
