Ironless Motor Coil Winding Machine

Linear Motor / Mirror Motor

Engineered for volume production of Ironless coils for linear motors and galvanometer systems, integrating precision winding, controlled layering, and automated unloading, delivering stable forming, high accuracy, and consistent coil quality for linear drive and optical scanning applications.

Product Details

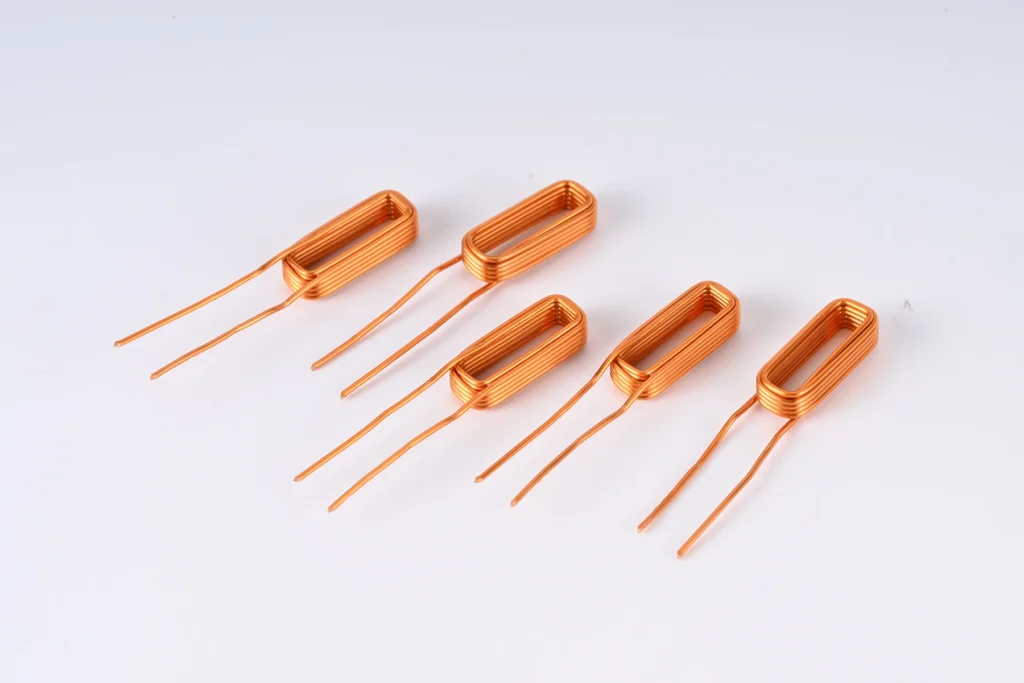

detail 03
产品图2
Process Detail 03

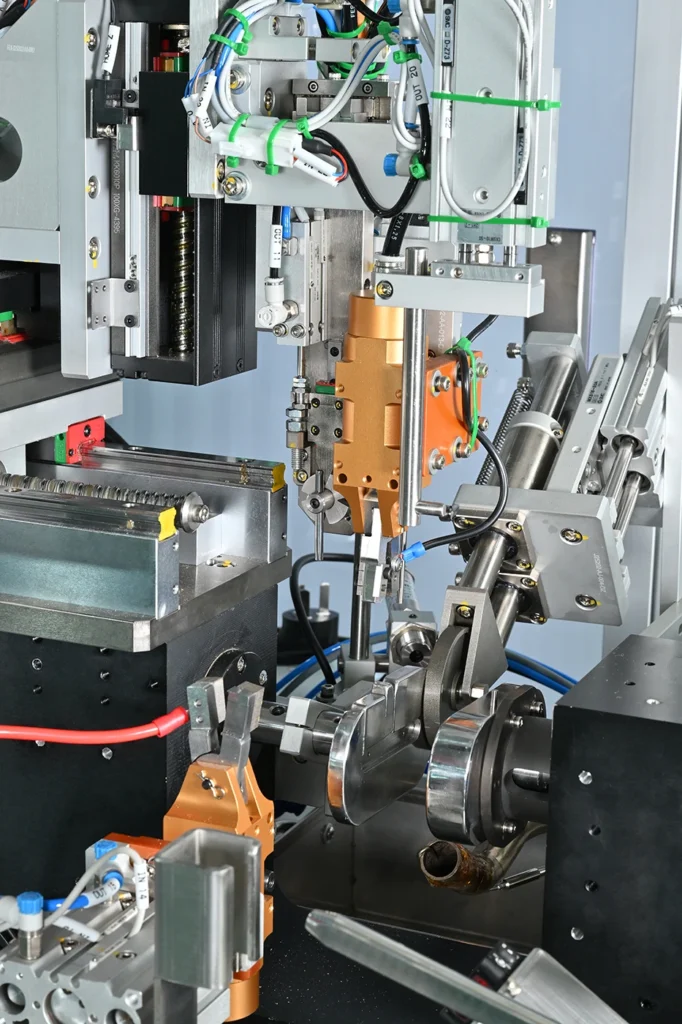

detail 01

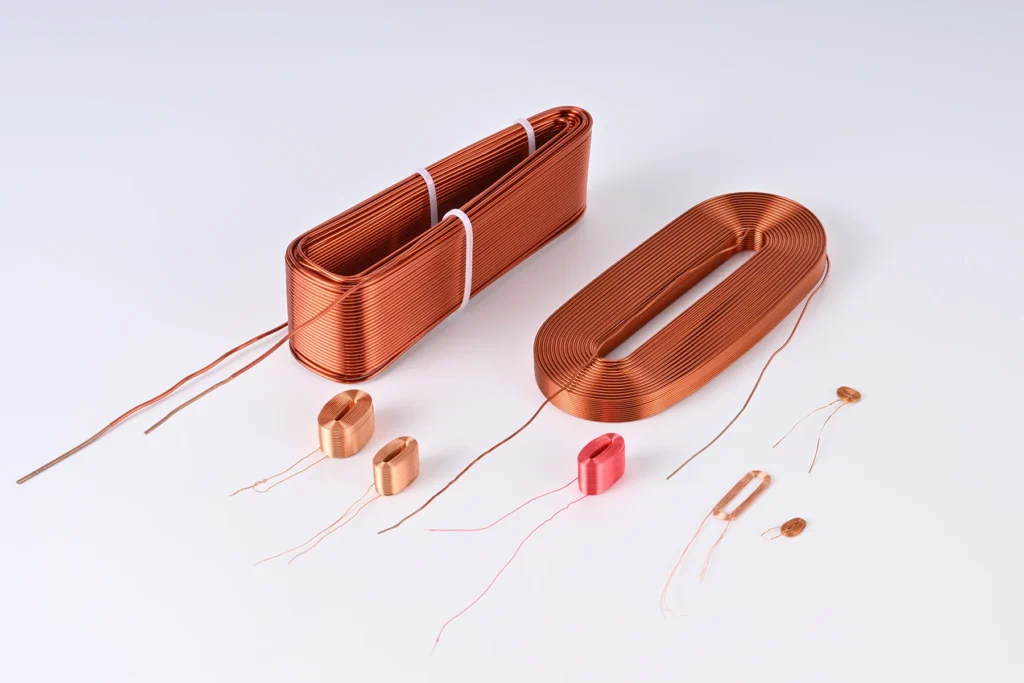

detail 02

Advantages

01
Advanced servo control ensures stable and repeatable air-core coil forming accuracy.
02
Optimized control of dimensions and wire tension improves batch-to-batch uniformity.
03
Integrated winding, wire guiding, and unloading streamline the production process.
04
Designed for scalable production of coils used in linear motors and galvanometer systems.
05
Robust mechanical design supports dependable operation in extended production cycles.
06
Automation and process optimization contribute to higher overall throughput.

Equipment Parameters

Model Linear Motor Coil Winding Machine
Product Series Coil Winding Automation Equipment
Application Coreless / Linear Motor Coil
Process Type Air Coil Forming
Target Industry Motor
Delivery Form Standalone machine
