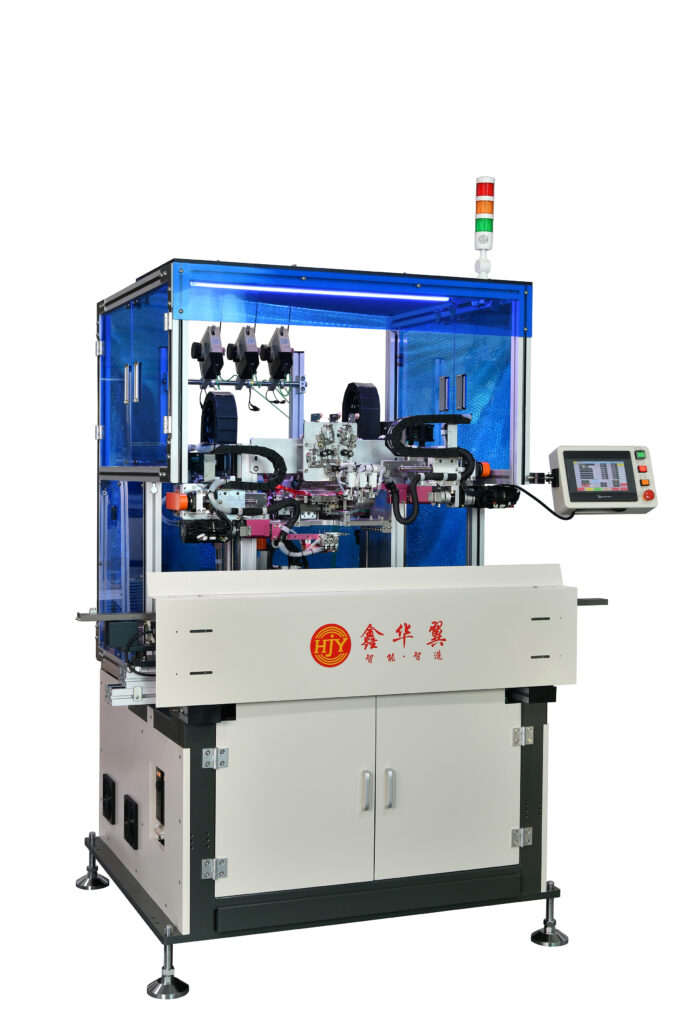

Single-Spindle Multi-Process Automated Winding Production Line

1-Spindle Multifunctional

Developed for high-volume bobbin coil manufacturing, the machine integrates precision winding, automatic wire arrangement, tubing insertion, and lead wire margin processing functions. It provides stable and high-precision coil processing performance, improving product consistency and production flexibility. The machine is widely used for power transformers, small power inductors, and related magnetic component manufacturing.

Product Details

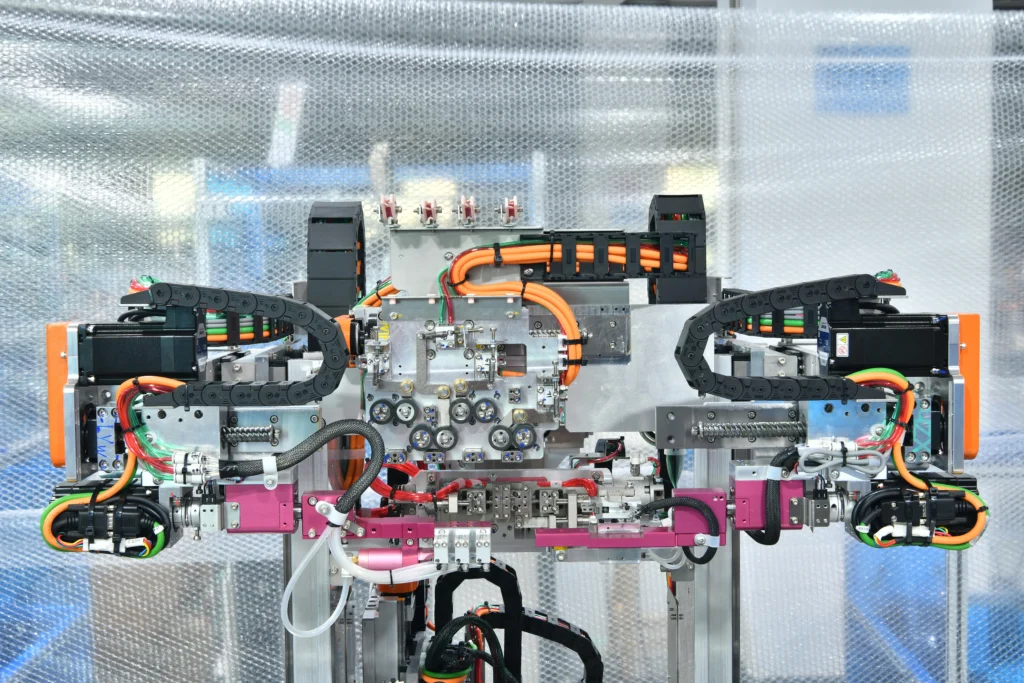

Process Detail 01

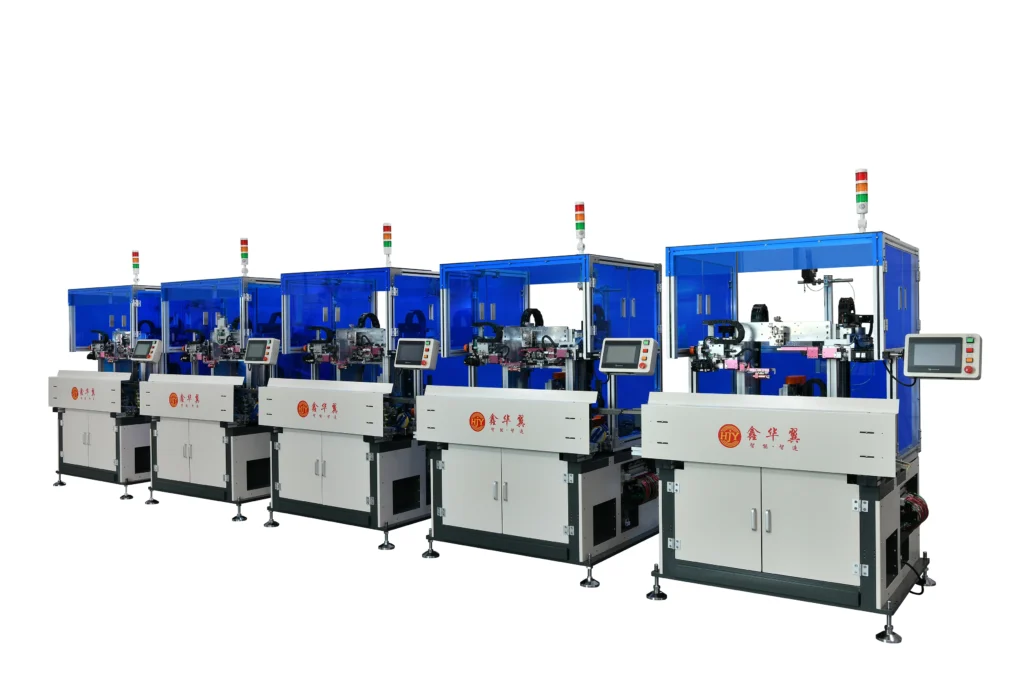

1759ad4e19477be18d5a97cc8ce3a1f9

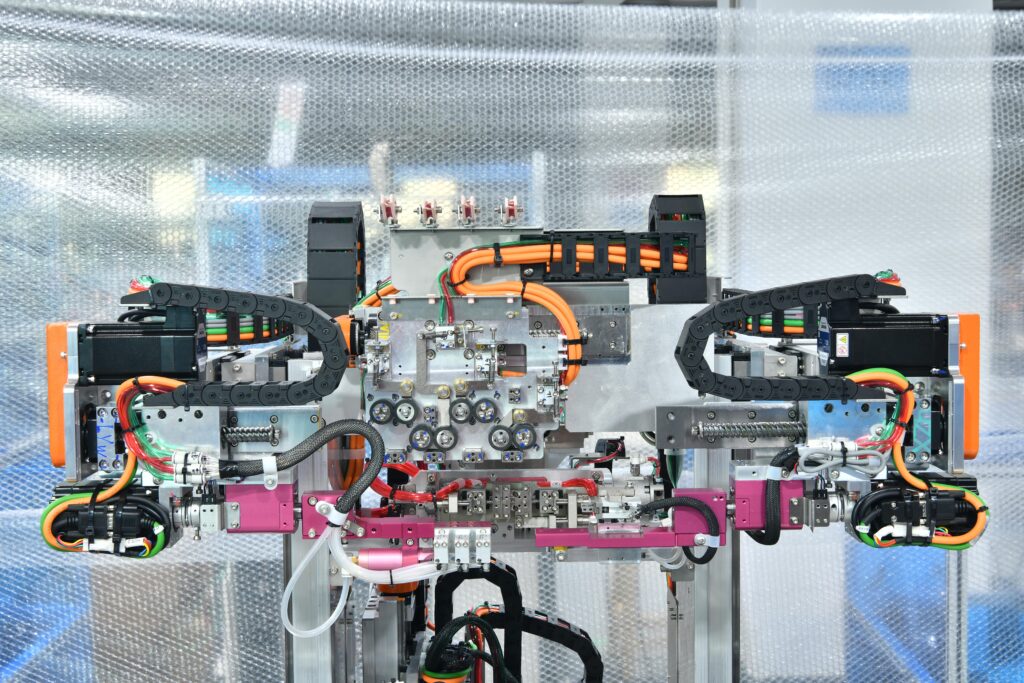

Process Detail 03

Advantages

01
Integrated winding, wire arrangement and insulation processes.
02
Precision winding control ensures coil consistency.
03
Flexible configurations support various product requirements.
04
Robust structure ensures reliable machine operation.
05
Parameterized control simplifies setup and changeover.
06

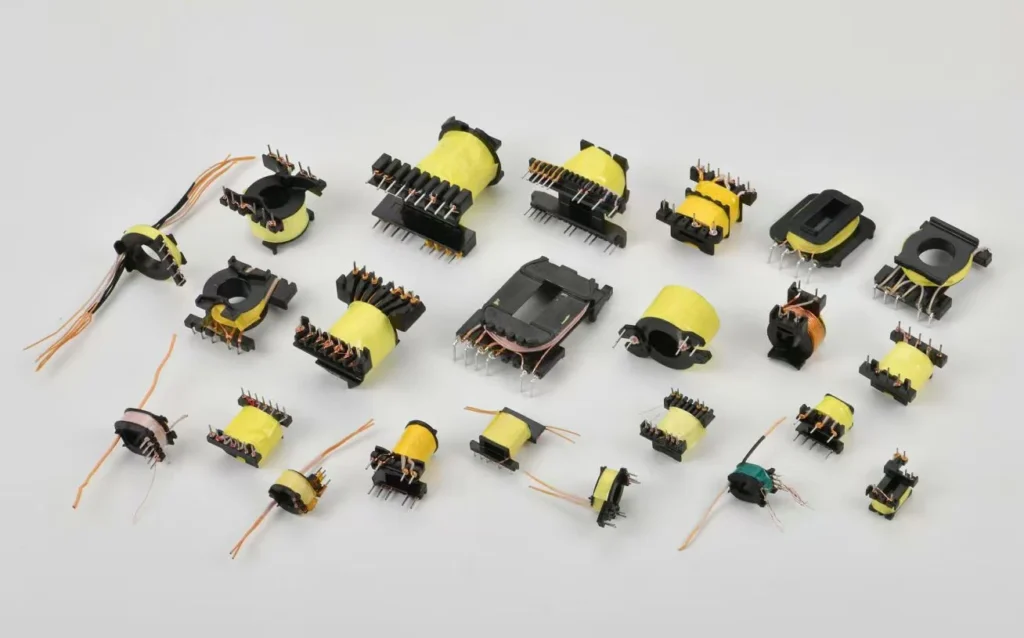

Applied in transformer, inductor and magnetic component manufacturing.

Equipment Parameters

Model CWMSS-003LR
Spindle Number 1
Spindle Speed (rpm) 4000
Spindle Servo Motor Power (W) 400
Nozzle Bar Move Range X:200, Y:200, Z:200
Spindle Diameter (mm) Standard 10
Wire Range (mm) 0.02-0.40 mm; pneumatic cutter required for thicker wire
Tape Kind 2
Single Wire Into One Tube Range 28L-14L
Bifilar Wire Into One Tube Range 28L-15L
Traverse Moving Range (mm) X:110, Y:150, Z:70
Traverse Speed (mm/sec) 200
Controller JHY-4
Power Voltage Single-phase 220V 50/60Hz / 3000W
Machine Size (mm) 1500×1200×1780mm / 510kg
