Alpha Hollow Coil Winding Machine

Alpha Hollow Coil

Mass production development of air-core reactor coils integrating precision winding, atomatic wire guiding, automatic discharging and intelligent tape control. The equipment features stable and efficient forming performance, improve coil consistency and production capacity, and is suitable for mass production and processing of reactors and filters.

Product Details

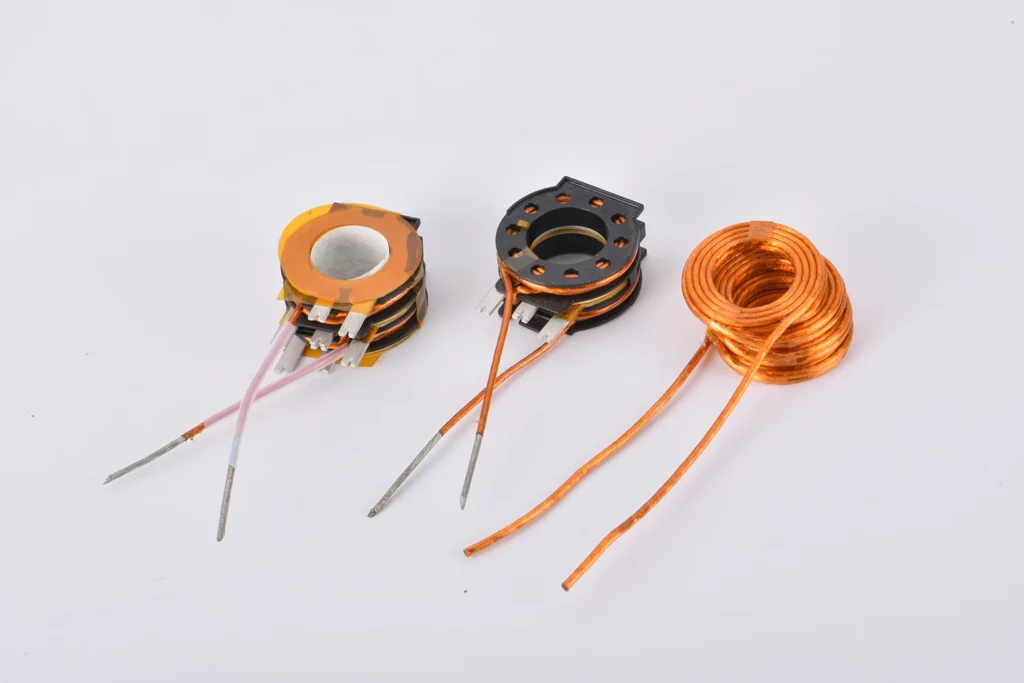

Process Detail 01

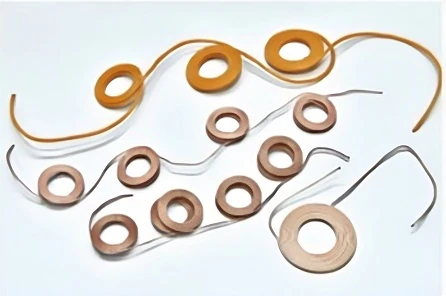

Process Detail 02

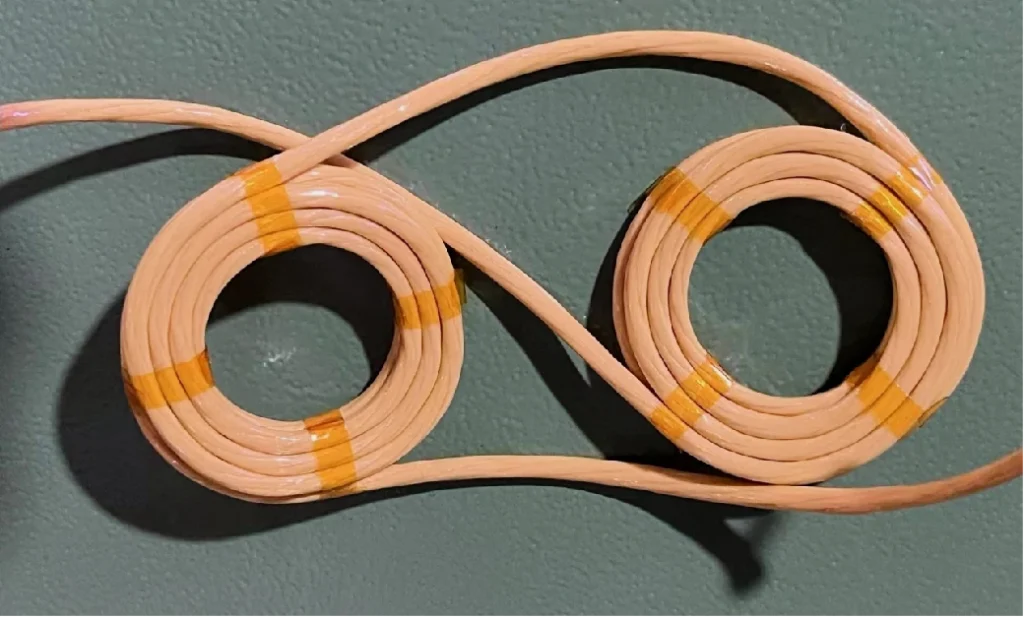

Process Detail 03

Advantages

01
Built for air coil forming production in air coil applications, suitable for air coils, wireless charging coils or linear-motor coil scenarios.
02
Focuses on forming consistency, winding control and process adaptability across different wire diameters.
03
Tooling, heating, inspection and discharge methods can be expanded according to product structure.
04
Key components are sourced from established imported brands for higher reliability and durability.
05
The machine layout and operating logic are mature, making it suitable for early model-direction confirmation.
06
Computer and touchscreen programming support can serve as a reusable baseline for later ACF selling points.
07
This draft currently supports customer review first, and the final website copy should still be refined afterward.

Equipment Parameters

Model JHYAC-01 / 02 | CLA-02L / CL-02
Spindle Number 1 / 2
Max Spindle Speed (rpm) MAX 5000
Spindle Servo Motor Power (W) 750
Traverse Motor Power (W) Y:400W
Wire Range (mm) Depends on process, commonly below 1.2
Max Winding OD (mm) 70
Traverse Moving Range (mm) Y:150
Heating Power (W) 1600W
Controller JHY-3
Power Voltage Single-phase 220V 50/60Hz / 3000W
Air Pressure (MPa) 0.45-0.55
Machine Size (mm) 1200×1200×1800mm / 500kg
