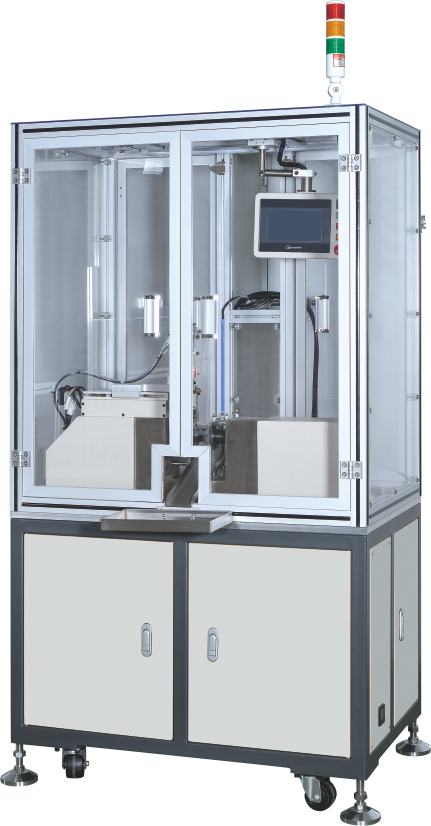

Hollow Coil Winding Machine

Hollow Coil

Developed specifically for the mass production of reactor air-core coils, it is compatible with the self-adhesive enameled wire resistance heating molding process. It integrates precise servo winding, high-precision automatic wire arrangement, automatic finished product cutting, and intelligent closed-loop control module for tape width. The equipment has stable and efficient molding, effectively improving the consistency of coil size and the production cycle, and is widely applicable to the batch manufacturing of power magnetic components such as reactors and EMC filters.

Product Details

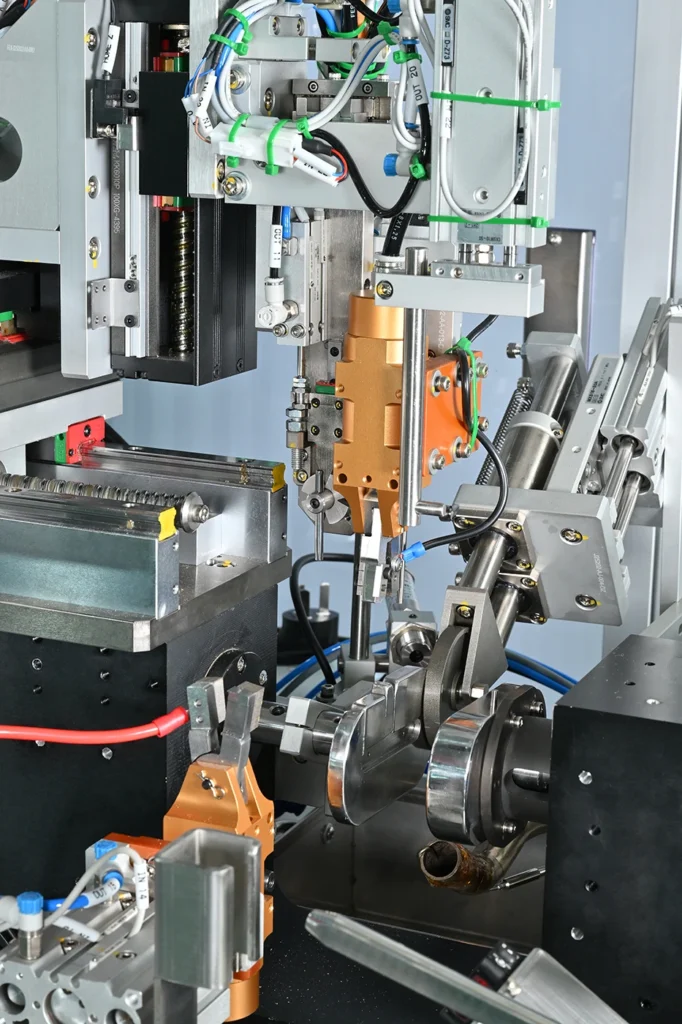

Process Detail 01

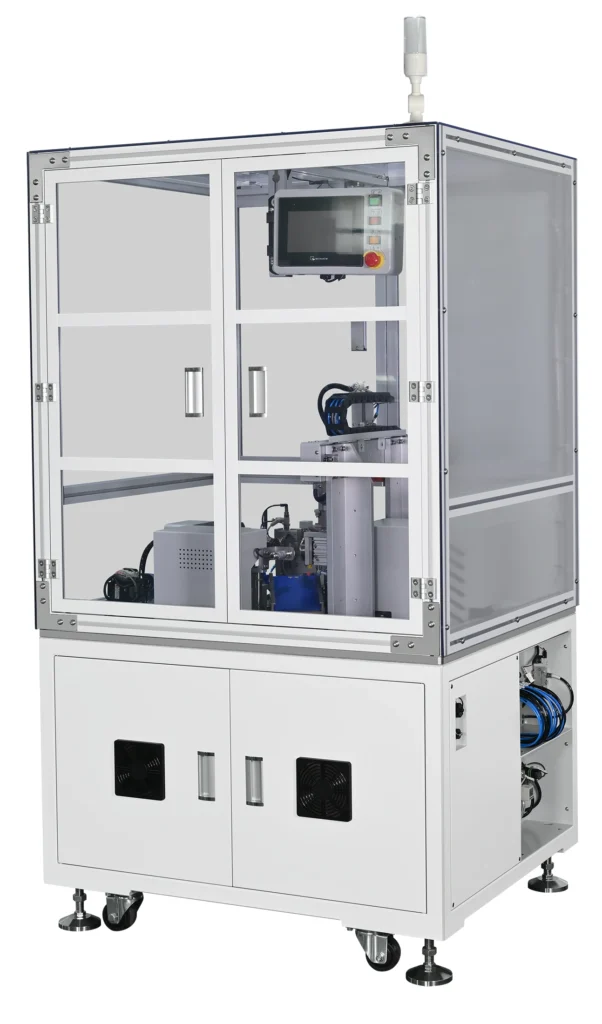

Process Detail 02

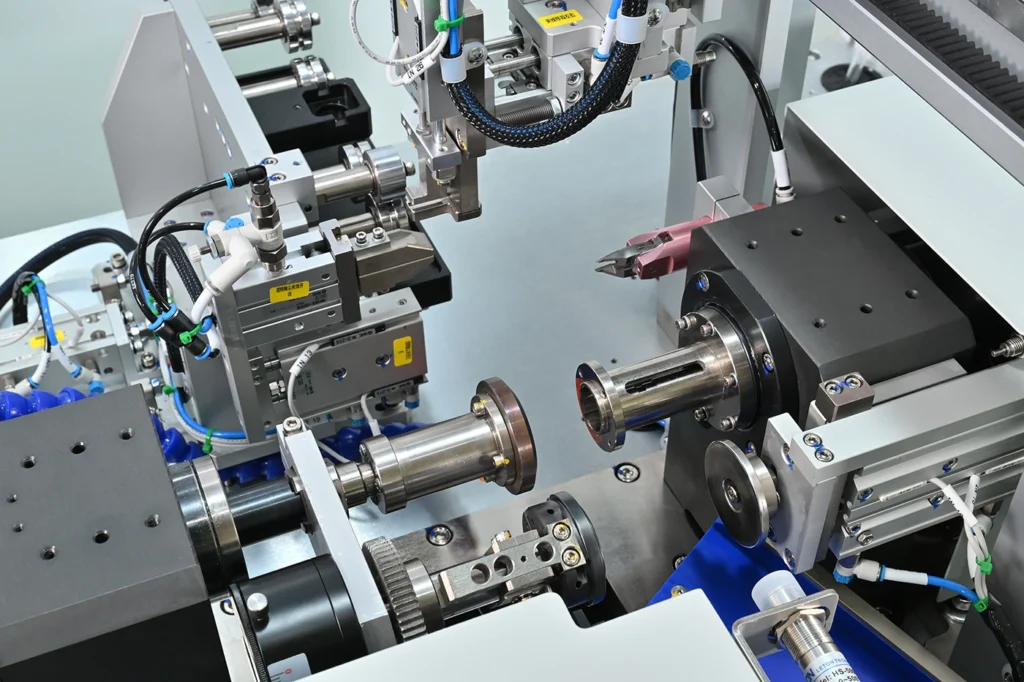

Process Detail 03

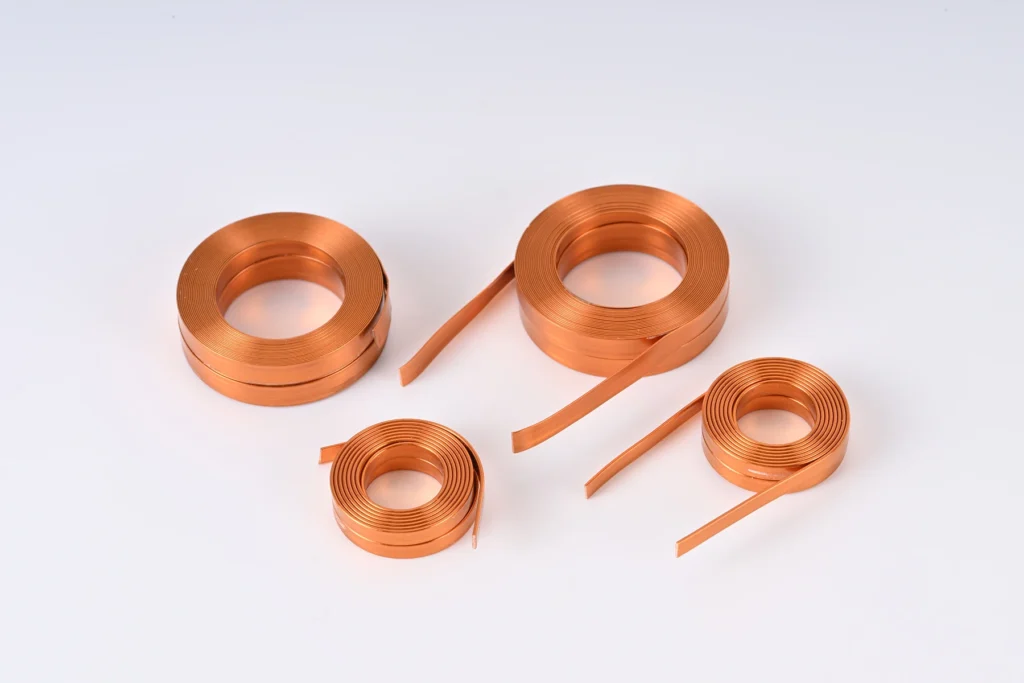

Process Detail 04

Advantages

01

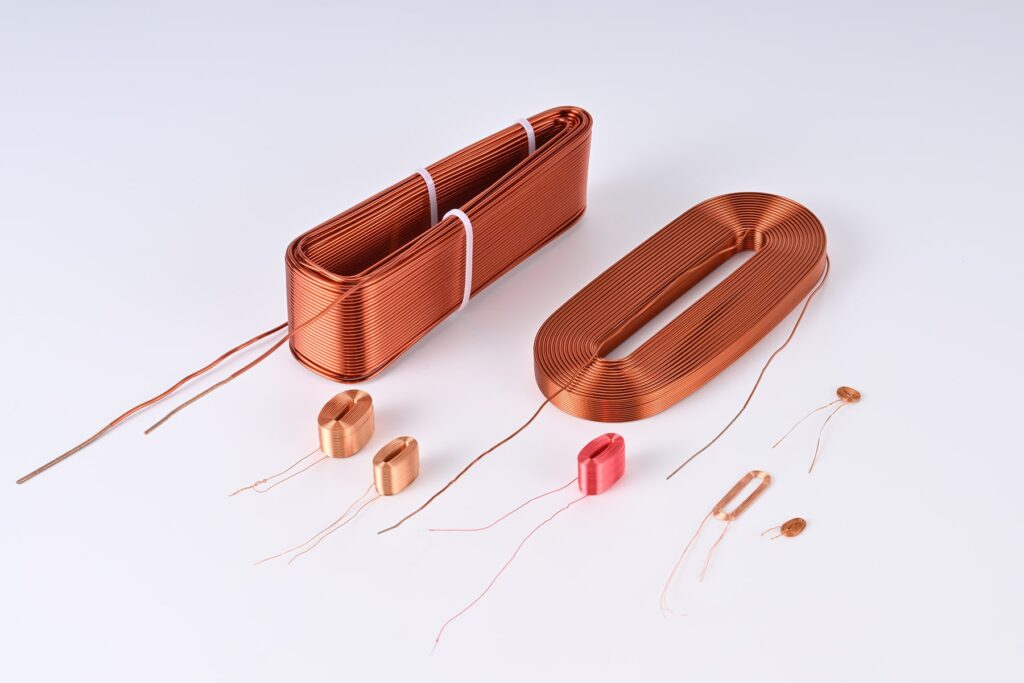

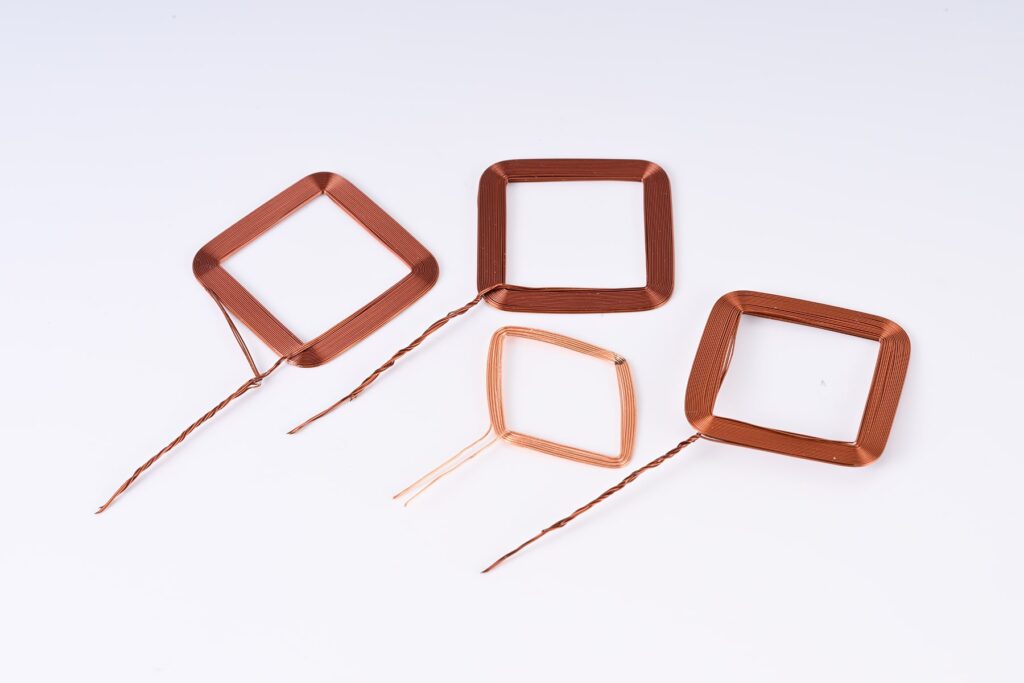

Built for air coil forming production in air coil applications, suitable for air coils, wireless charging coils or linear-motor coil scenarios.
02
Focuses on forming consistency, winding control and process adaptability across different wire diameters.
03
Key components are sourced from established imported brands for higher reliability and durability.
04
The machine layout and operating logic are mature, making it suitable for early model-direction confirmation.
05
Computer and touchscreen programming support can serve as a reusable baseline for later ACF selling points.
06
This draft currently supports customer review first, and the final website copy should still be refined afterward.

Equipment Parameters

Model CLD-01 / CLD-02
Spindle Number 1 / 2
Max Spindle Speed (rpm) MAX 1500
Spindle Servo Motor Power (W) 750
Nozzle Bar Move Motor Power (W) X:200, Y:200, Z:400
Position Accuracy (mm) ±0.01
Wire Range (mm) φ0.5-φ2.3
Self-bond Process Resistance heating
Loading & Unloading Automatic discharge
Controller JHY-3
Machine Size (mm) 2200×1300×1900mm / 960kg
