Magnetic Component Automation Equipment / Transformer / Multi-spindle

2-Spindle Winding Machine Multifunctional

WMSS02-90

Developed to meet the mass production requirements of skeleton transformer coils, this equipment integrates precision winding, atomatic wire guiding, sleeve threading and glue wrapping, as well as automatic loading and unloading. It enables stable and efficient coil processing, improves coil consistency and automated production capacity, and is widely used in the manufacturing of components such as power transformers and small inductors.

Product Details

Process Detail 01

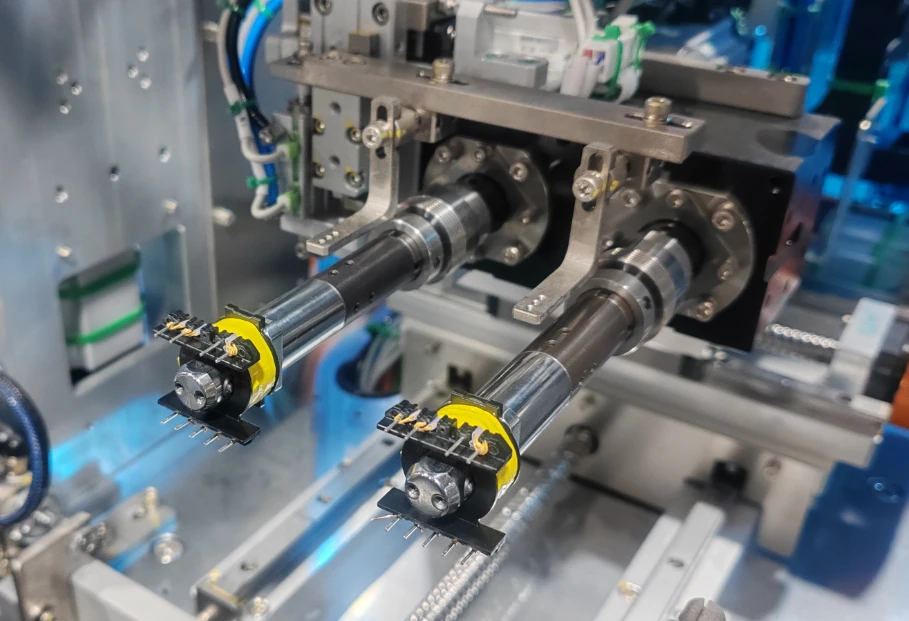

Process Detail 02

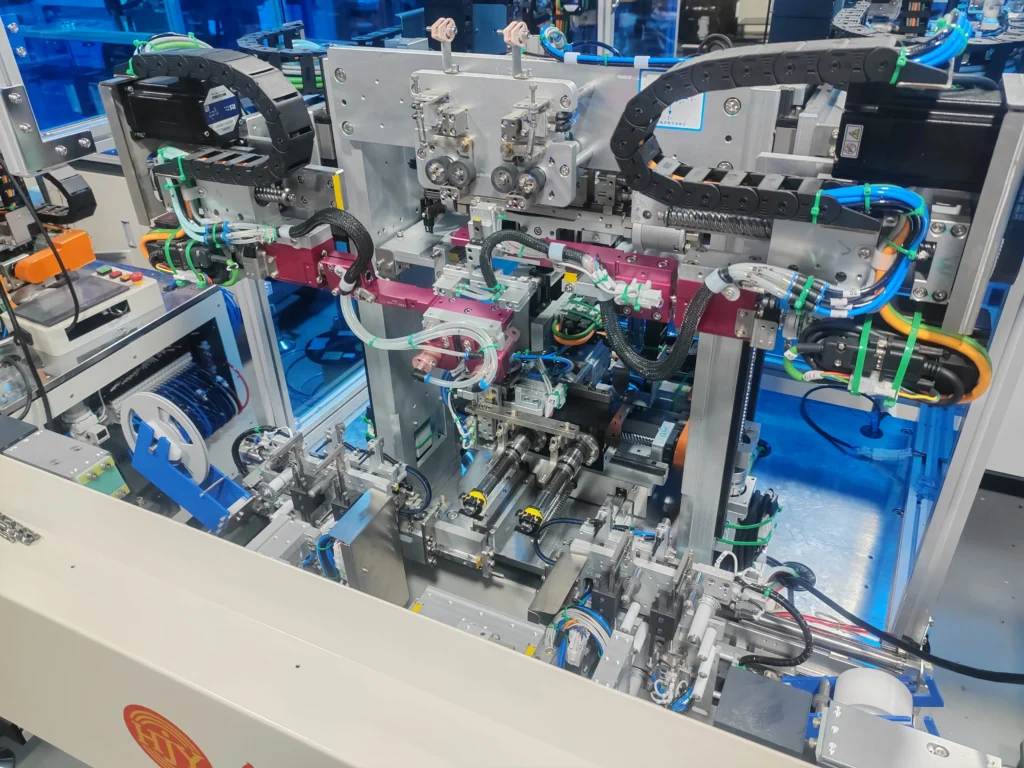

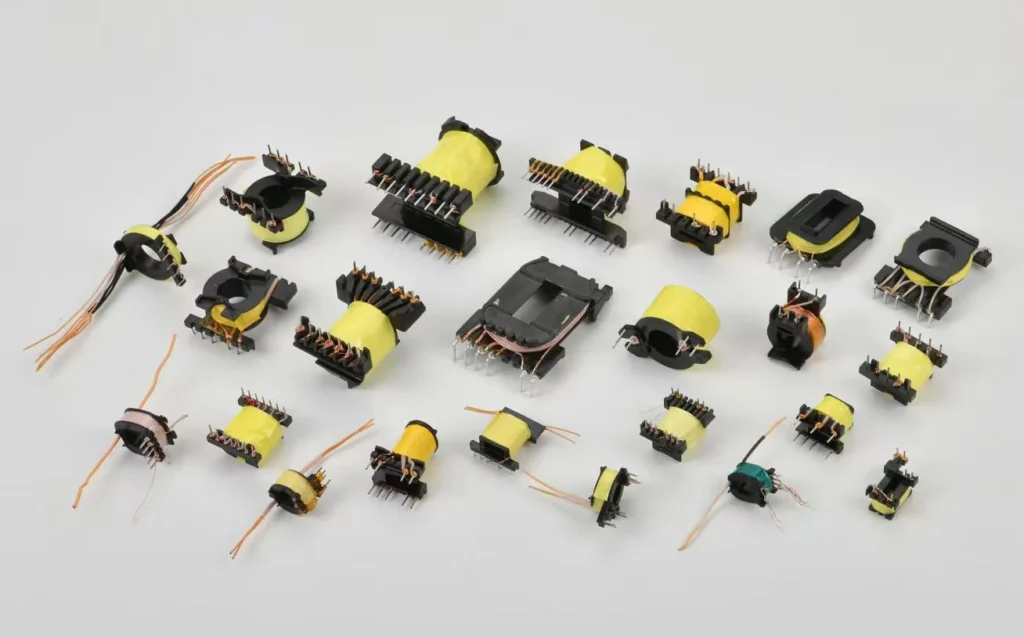

Process Detail 03

Advantages

01
Dual-spindle layout supports dual-station takt time and multifunction process combinations.
02
The plan includes automatic taping, dual-station margin/interlayer tape, and automatic tube-threading units.
03
Optional multi-strand twisting and vibratory bowl feeding modules make it suitable as a standalone standard machine page.
04
Key components are sourced from established imported brands for higher reliability and durability.
05
The machine layout and operating logic are mature, making it suitable for early model-direction confirmation.
06
Computer and touchscreen programming support can serve as a reusable baseline for later ACF selling points.
07
This draft currently supports customer review first, and the final website copy should still be refined afterward.
08
Automatic tube threading for copper and insulated wires.
09
Optional twisting module for dual-spindle winding with tube threading.
10
Automatic taping and margin tape functions.
11
Automatic wrapping terminal and fly-wire functions.

Equipment Parameters

Model CTWM2-180 / TWM2-180
Spindle Number 2
Process Family Single-color tube threading, wrapping terminal, start/end tube threading, single or double margin tape
Auto Taping Unit 1 set
Margin / Interlayer Tape Unit 1 set (dual-station)
Auto Tube Threading Unit 2 sets
Cutting Unit 2 sets
Loading & Unloading 1 set
Linear Feeder Unit 1 set
Optional Units Multi-strand wire twisting unit, vibratory bowl feeder
Layout Size Reference Approx. width 1.3 m; height 1.8 m
