Electric Reactor Coil Winding Machine

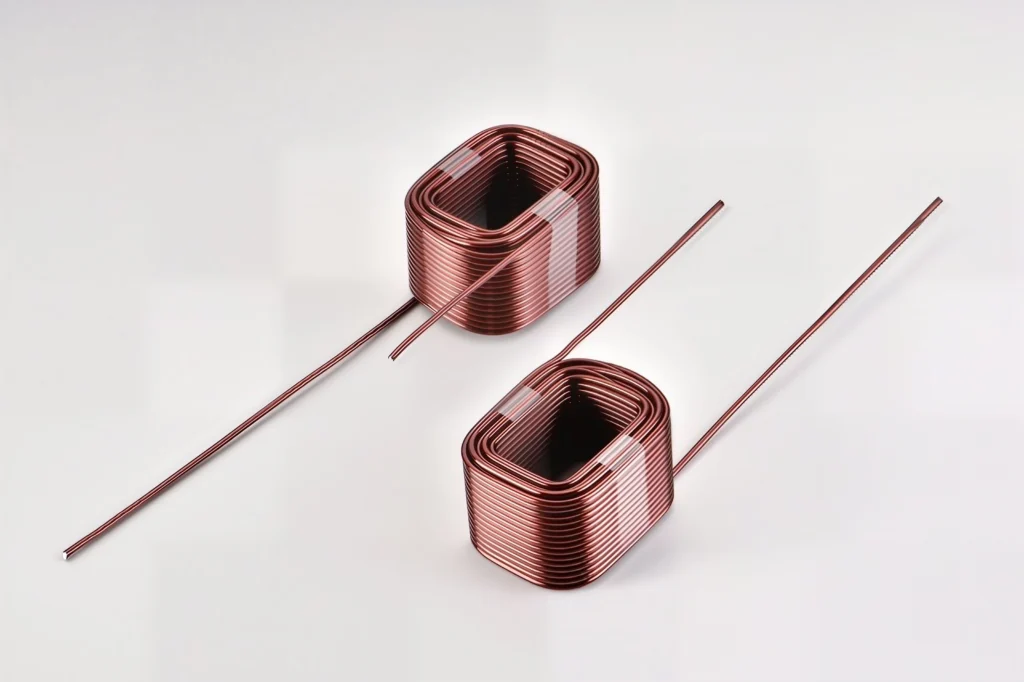

Electric Reactor Coil

Designed for air-core reactor coil manufacturing, this machine integrates automatic wire guiding, automatic unloading system, and tape width control functions. It enables precise and consistent coil winding with improved production efficiency and is suitable for various reactor coil applications.

Product Details

Process Detail 01

Advantages

01
Built for air coil forming production in reactor applications, suitable for air coils, wireless charging coils or linear-motor coil scenarios.
02
Focuses on forming consistency, winding control and process adaptability across different wire diameters.
03
Tooling, heating, inspection and discharge methods can be expanded according to product structure.
04
Key components are sourced from established imported brands for higher reliability and durability.
05
The machine layout and operating logic are mature, making it suitable for early model-direction confirmation.
06
Computer and touchscreen programming support can serve as a reusable baseline for later ACF selling points.
07
This draft currently supports customer review first, and the final website copy should still be refined afterward.

Equipment Parameters

Model WM01-TP/ CT-01
Spindle Number 1
Spindle Speed (rpm) 1500
Spindle Servo Motor Power (W) 3000
Axis Positioning Accuracy (°) (°) 1-3 arc-min
Nozzle Bar Move Range X:215, Y:130, Z:135,
Position Accuracy (mm) ± 0.01
Wire Range (mm) φ0.8-φ2.3mm; max tension range (N): 600N
Tape Width Range (mm) 5mm-12mm
Efficiency (UPH) 144 pcs (CT: 25 s reference; actual output varies with wire diameter and turn count)
Traverse Speed (mm/sec) 250
Loading & Unloading Automatic discharge
Controller JHY-3
Power Voltage Single-phase 220V, 50/60Hz
Consumed Power (W) 5000
Air Pressure (MPa) 0.45-0.55
Program Storage ≤100
Machine Size (mm) 2815(L)*2080(W)*1800(H)
Machine Weight (kg) 960kg
