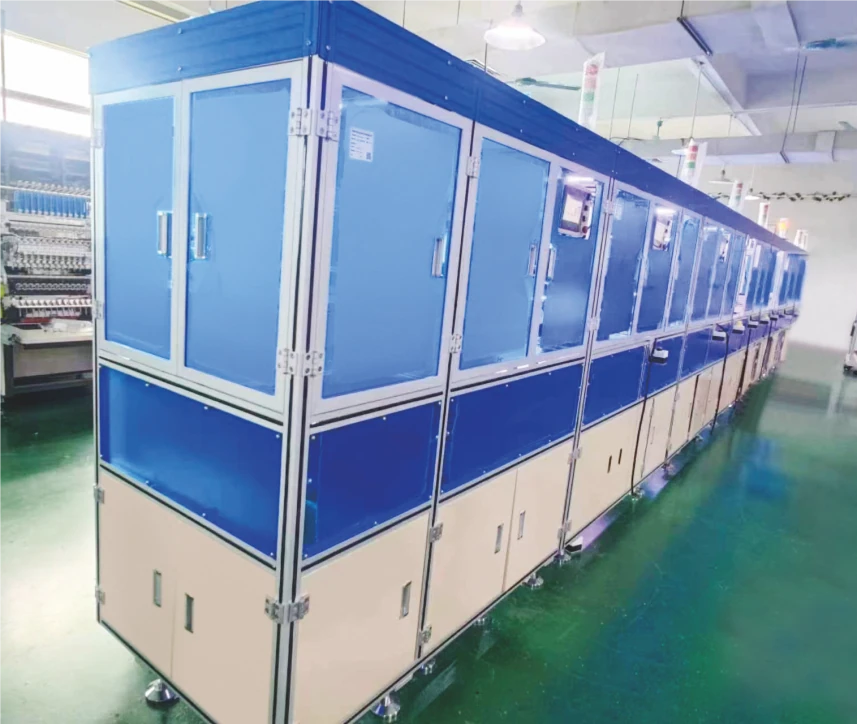

Coil Assembly Production Line

Coil Assembly Production Line

Developed to meet the automation requirements of coil product manufacturing, this equipment integrates automatic loading, precision assembly, dispensing and curing, and in-line inspection functions. Adopting a multi-station parallel production architecture, it enables high-precision assembly of coils, magnetic cores, and terminal components, improving assembly efficiency and product consistency. It is widely applied in high-end manufacturing fields such as power electronics, new energy power modules, magnetic components, filter reactors, and AI servers.

Product Details

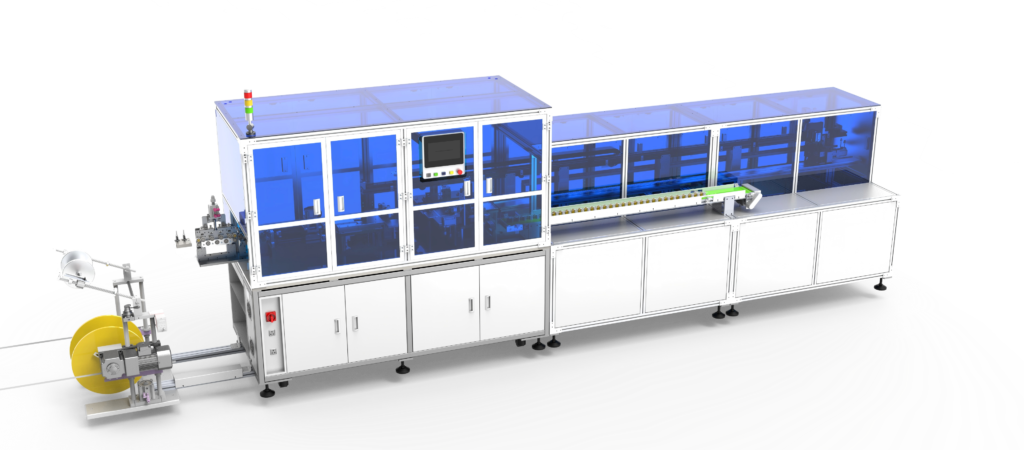

untitled.442

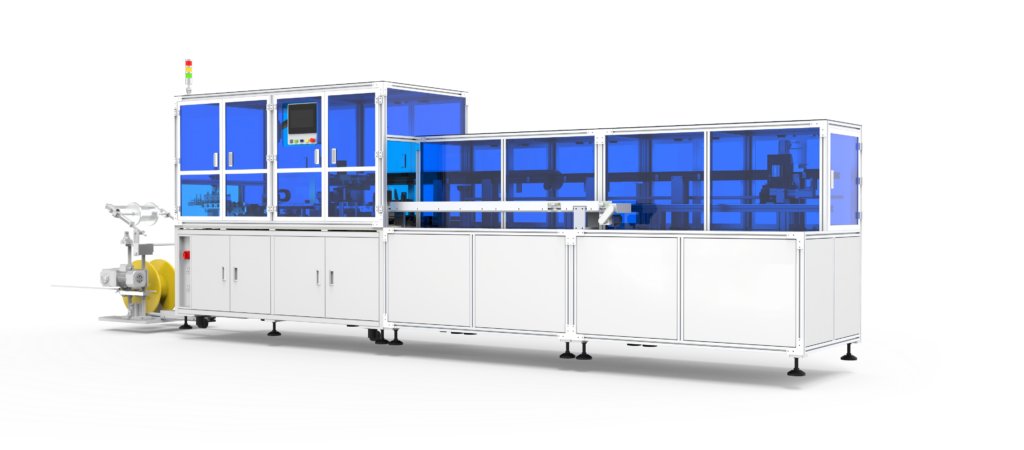

untitled.445

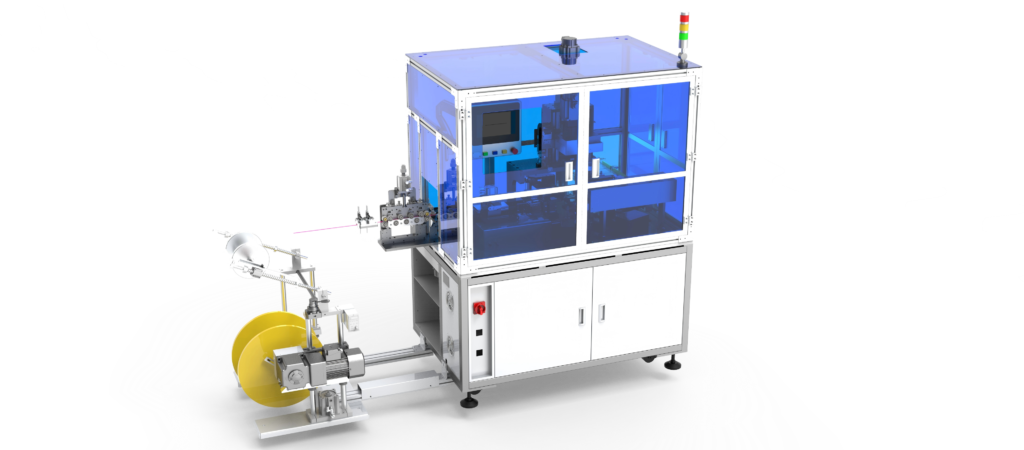

untitled.443

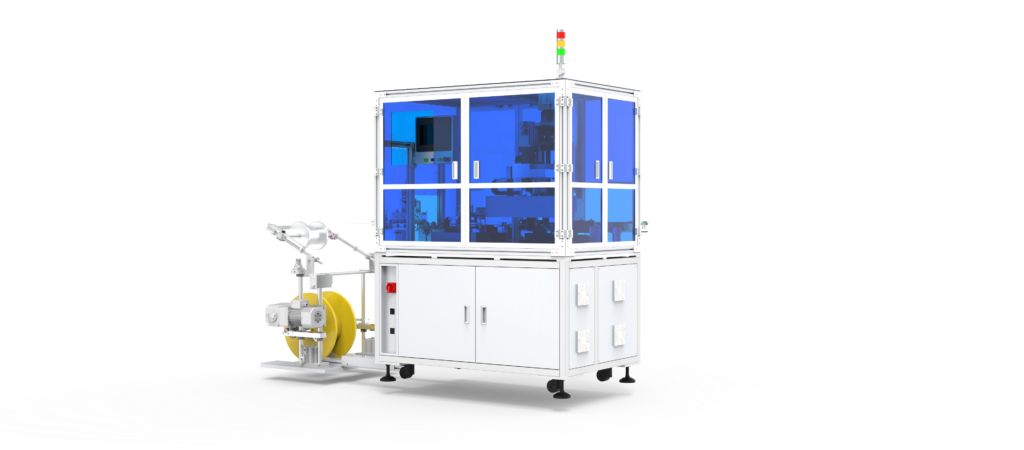

untitled.446
Process Detail 05
Process Detail 06
Process Detail 07
Process Detail 08
Process Detail 09

Advantages

01
Integrates automated feeding, precision assembly, dispensing and curing, and inspection processes for streamlined multi-step manufacturing.
02
Multi-station parallel processing architecture enhances assembly efficiency and supports high-volume production requirements.
03
High-precision assembly control ensures reliable integration of coils, magnetic cores, and terminal components.
04
Automated dispensing and curing management improves product consistency and process stability.
05
Integrated in-line inspection enables timely process monitoring and enhances quality control.
06
Suitable for automated assembly, transformers, and magnetic components used in power electronics and renewable energy applications.

Equipment Parameters
