Automatic T-core Inductor Winding Machine

T-core

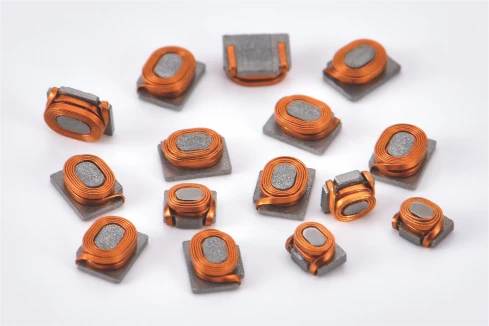

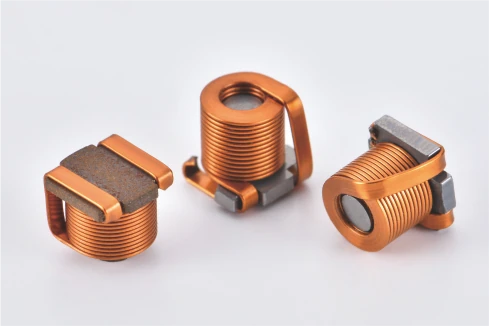

Developed to meet the mass production demands of T-type magnetic core inductors, this equipment integrates precision winding, atomatic wire guiding, automatic discharging and lead wire sorting control. It enables stable and efficient forming of inductor coils, improves product consistency and production efficiency, and is widely used in the manufacturing of T-core power inductors for switching power supplies and adapters.

Product Details

Process Detail 01
Process Detail 02
Process Detail 03
Process Detail 04
Process Detail 05
Process Detail 06

Advantages

01
This series of machine key componets all impored from Japan, high reliability, greatly increase the life of the machine
02
Design novel, simple structure, strong rigidity, simple operation, easy maintenance
03
Programmed by computer or touch screen, the freedom to choose, Chinese or english display easy to understand
04
Key components are sourced from established imported brands for higher reliability and durability.
05
The machine layout and operating logic are mature, making it suitable for early model-direction confirmation.
06
Computer and touchscreen programming support can serve as a reusable baseline for later ACF selling points.
07
This draft currently supports customer review first, and the final website copy should still be refined afterward.
08
Key components are imported from Japan for strong reliability, high durability and longer machine life.
09
Novel appearance, simple structure, strong rigidity, easy operation and convenient maintenance.
10
Programmable by computer or touchscreen, with Chinese and English display options that are easy to understand.
11
Unique quick-coupling fixture design reduces changeover time.

Equipment Parameters

Model T-core Winding Machine
Spindle Number 1
Spindle Speed (rpm) 5000
Spindle Servo Motor Power (W) 400
Axis Positioning Accuracy (°) (°) 1-3 arc-min
Nozzle Bar Move Range X:100 Y:100 Z:100
Position Accuracy (mm) ± 0.01
Wire Range (mm) φ0.04-φ0.09mm; max tension range (g): 5-100g
Applicable Product Size 2016-2520
Efficiency (UPH) 1500 pcs (actual output varies with wire diameter and turn count)
Traverse Speed (mm/sec) 250
Welding Temperature Range (℃) 400 ℃ - 800 ℃
Welding Temperature Accuracy (℃) ± 10 ℃
Loading & Unloading Vibratory bowl feeding & automatic discharge
Controller JHY-3
Power Voltage Single-phase 220V, 50/60Hz
Consumed Power (W) 2000
Air Pressure (MPa) 0.45-0.55
Program Storage ≤100
Machine Size (mm) 1200(L)*900(W)*1800(H)
Machine Weight (kg) 500kg
Nozzle bar move range X:100 Y:100 Z:100
Tension Range (N) 5-100g
Tape Width Range (mm) 2016-2520
