Automated Testing and Packaging Machine

Testing / Inspection / Packaging

Engineered for high-volume post-processing of power inductors, this solution integrates electrical testing, automatic defect sorting, and carrier tape packaging into a unified workflow, enabling consistent and efficient inspection and packing operations while improving yield and downstream productivity, and is well suited for SMD inductors and a wide range of small coil component packaging applications.

Product Details

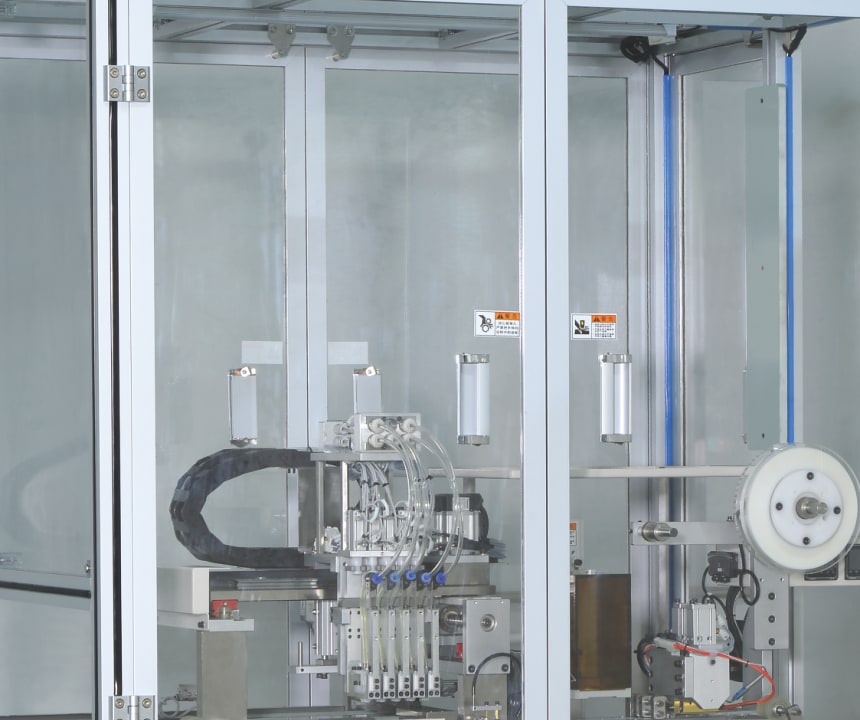

Process Detail 01
Process Detail 02

Advantages

01
Enables in-line electrical testing to ensure consistent quality and full traceability.
02
Integrates automated sorting to reliably separate non-conforming parts and reduce manual handling.
03
Automated taping and packaging supports continuous downstream processing and improved throughput.
04
Combines testing and packaging in a single platform to optimize floor space and process flow.
05
Designed for stable, continuous operation in high-volume production environments.
06
Integrates electrical testing, CCD inspection, marking, and automated packaging into a streamlined process, improving efficiency and consistency.
07
Parameter-driven setup enables quick changeovers and easy process adjustments.
08

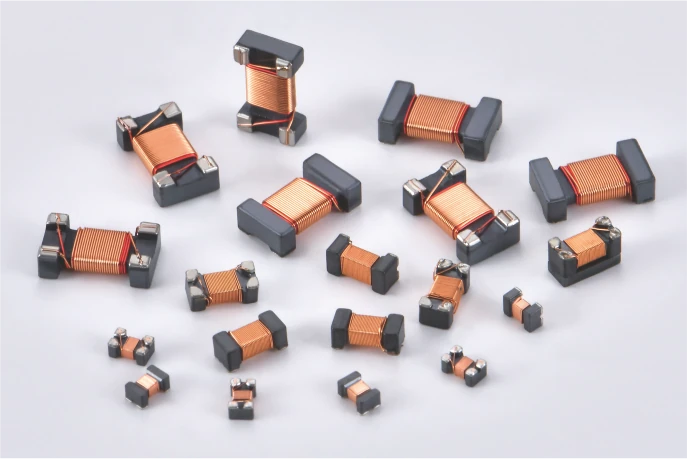

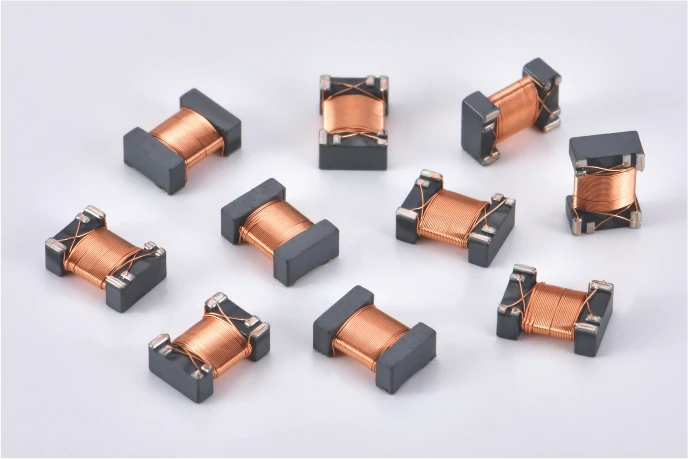

Supports a wide range of SMD inductors and small coil components for flexible production.
09
Compact design with easy maintenance helps reduce operating and service costs.

Equipment Parameters

Model MTP08-01 / MTP12-01
Rotary Table 1
Station of Rotary Table 8-12 (stations can be customized according to process requirements)
Position Accuracy (mm) 1-3 arc-min
Electrical test station Testing station (configurable according to process requirements)
Laser or Ink Marking Marking station (configurable according to process requirements)
Product dimension inspection / CCD appearance and dimension inspection Visual inspection station (configurable according to process requirements)
Carrier Tape Pakcing Packaging station (configurable according to process requirements)
Efficiency (UPH) 10000 pcs (efficiency varies by process requirements)
Loading & Unloading Automatic discharge
Controller JHY-3
Power Voltage Single-phase 220V, 50/60Hz
Air Pressure (MPa) 0.45-0.55
Program Storage ≤100
Machine Size (mm) 1100(L) * 600(W) * 1800(H) (with enclosure)
Machine Weight (kg) 600kg
